Machine Main Configuration:

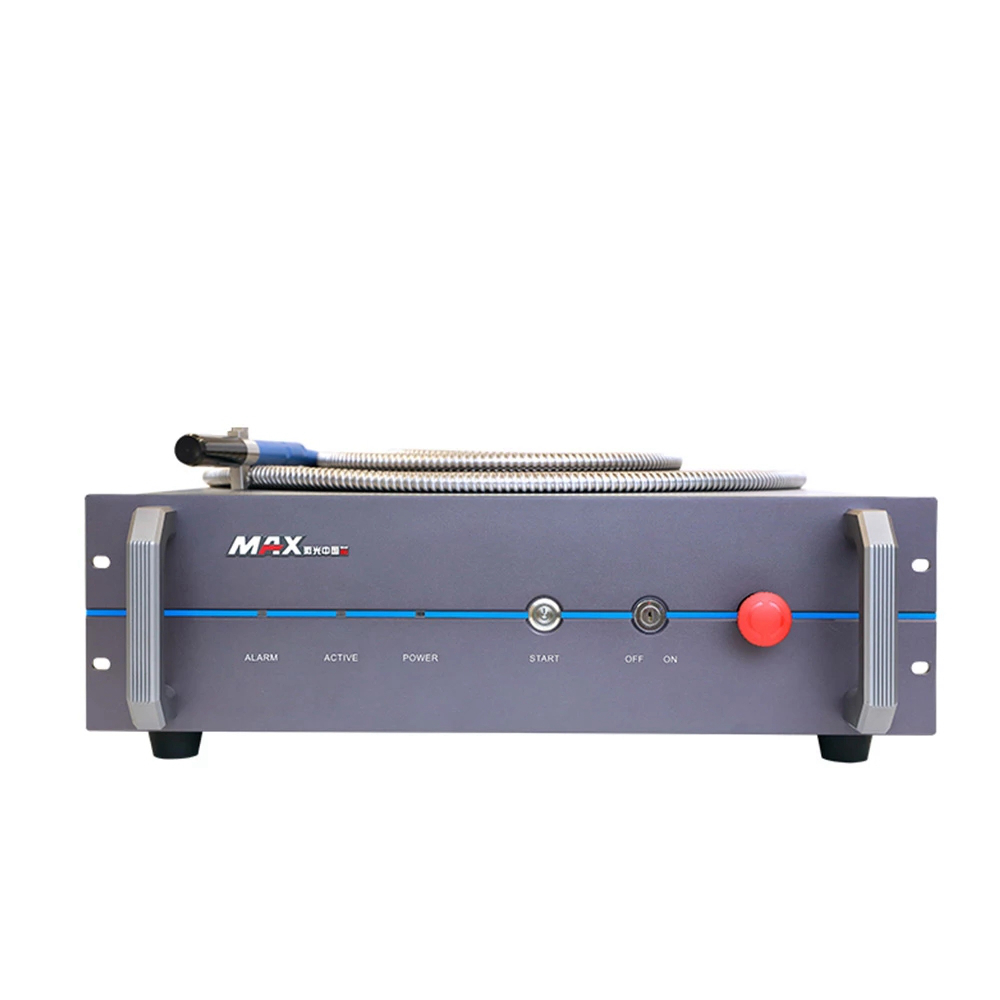

-HUAYUAN plasma system and MAX Laser Source

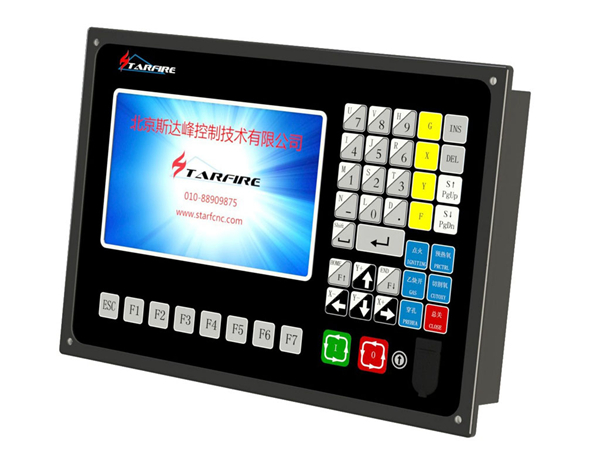

-STARTFIRE Control System

This control system is suitable for all kinds of flame / plasma, high-pressure water jet, laser cutting machine, widely used in metal processing, advertising, stone and other industries. The system is highly reliable and has the ability to resist plasma interference, lightning strike and surge. The practical flame / plasma cutting process, when plasma processing, automatically completes the corner speed control, and height controller control; remote control can be achieved by wireless remote control.

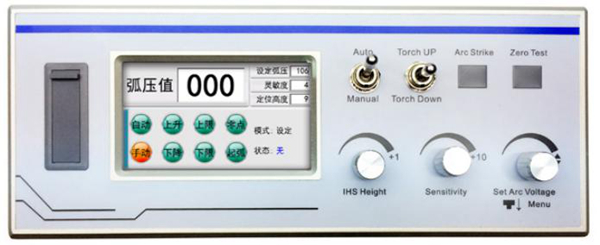

-START Arc Voltage Adjusting Control System

After this Arc voltage adjusting control system receives the cutting machine numerical control system's "cutting torch down" signal, or the system calls "positioning cycle start signal", it controls the torch to descend until the positioning switch is triggered, and then controls the torch to rise to the Initial positioning height.

After the positioning is completed, the controller will send a positioning success signal.

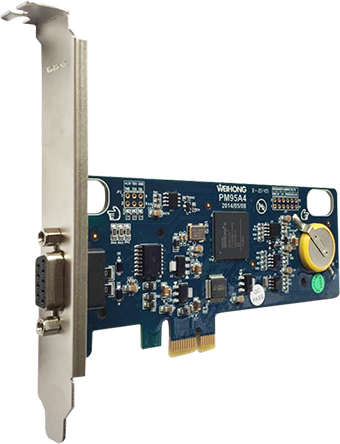

WEIHONG Laser Control System

Specification:

Cutting Scope:                                      1500x3000mm

Laser/ Plasma cutting thickness:          5mm/25mm

Cutting Speed:                                      According to cutting thickness.

XY axis Positioning Accuracy:              ±0.03mm/m

XY axis Repeat Positioning Accuracy: ±0.02mm/m

Unloading runding speed：                 80m/min

Machine Dimension:                           4000*2280*2100mm

Power Supply:                                     380V 50Hz 14KW
