Fiber Laser Cutting Machines
Updated Whole Cover Fiber Laser Cutting Machine
Updated Whole Cover Fiber Laser Cutting Machine
Updated Whole Cover Fiber Laser Cutting Machine
Updated Whole Cover Fiber Laser Cutting Machine
Updated Whole Cover Fiber Laser Cutting Machine
Updated Whole Cover Fiber Laser Cutting Machine

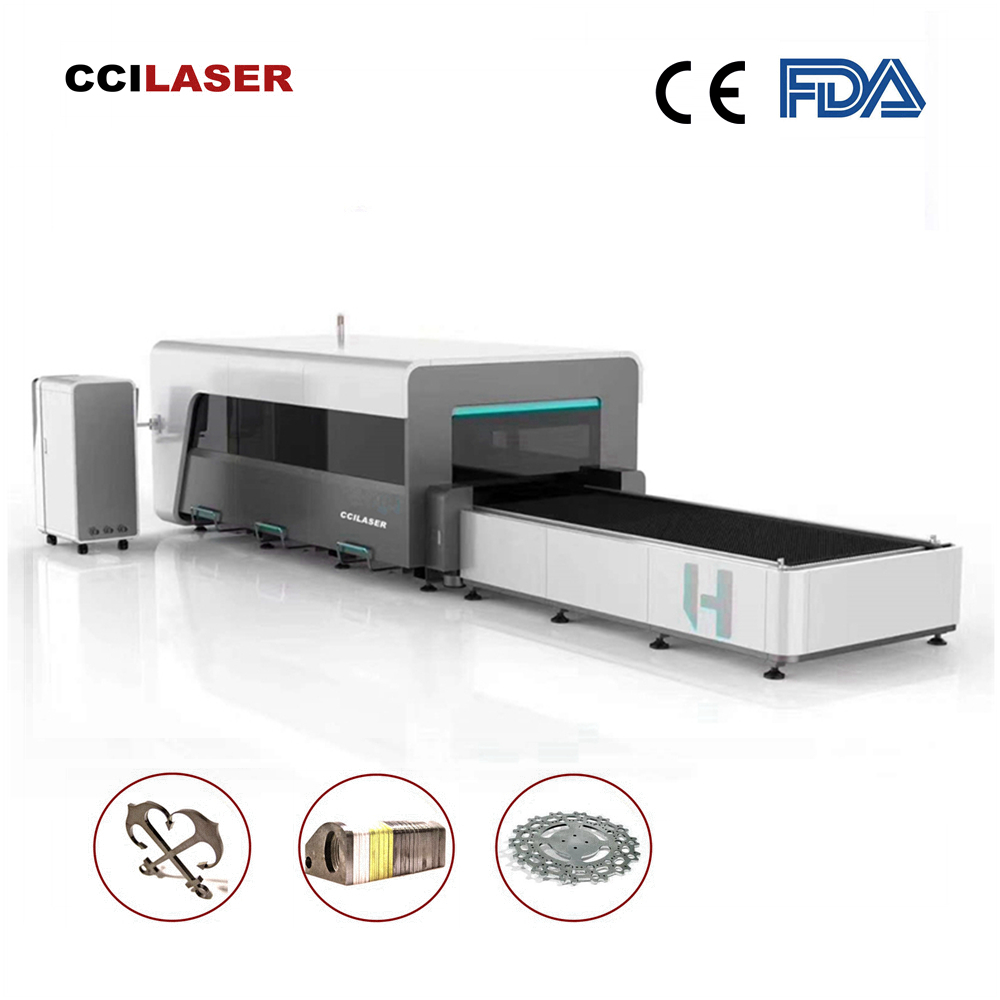

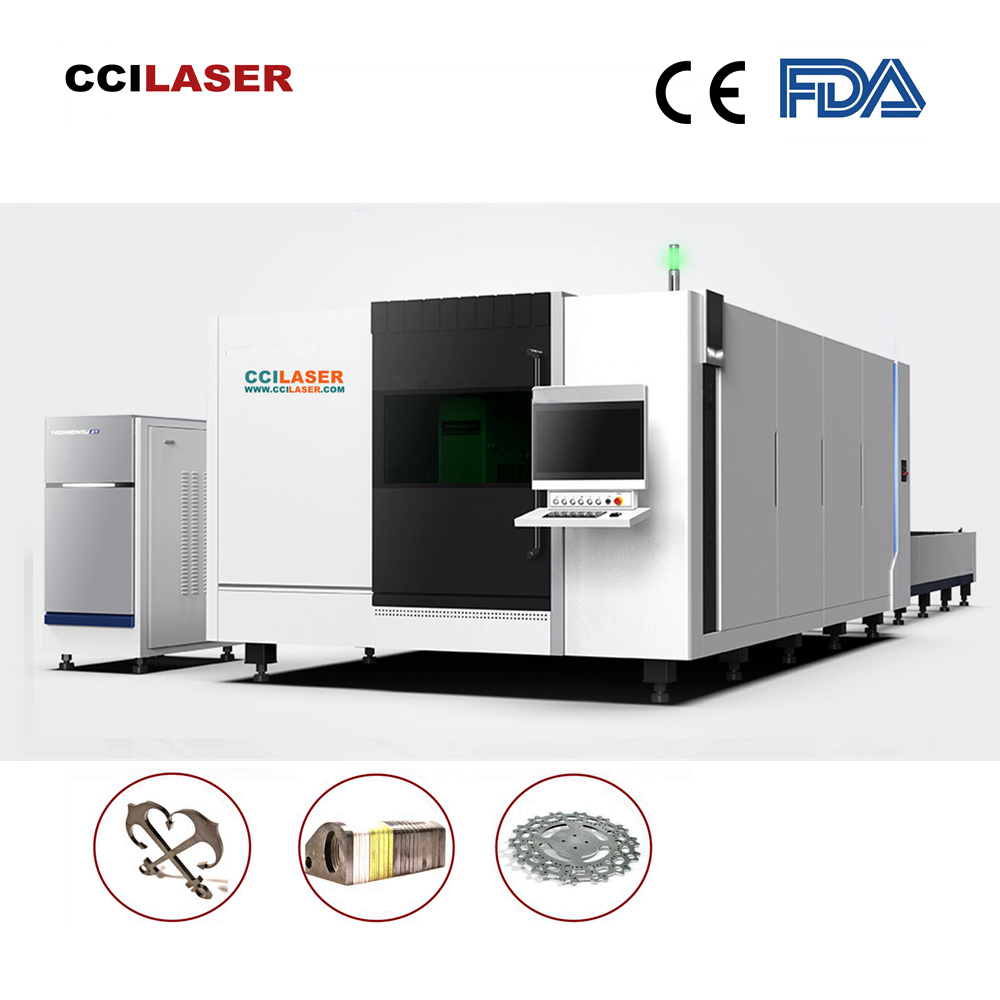

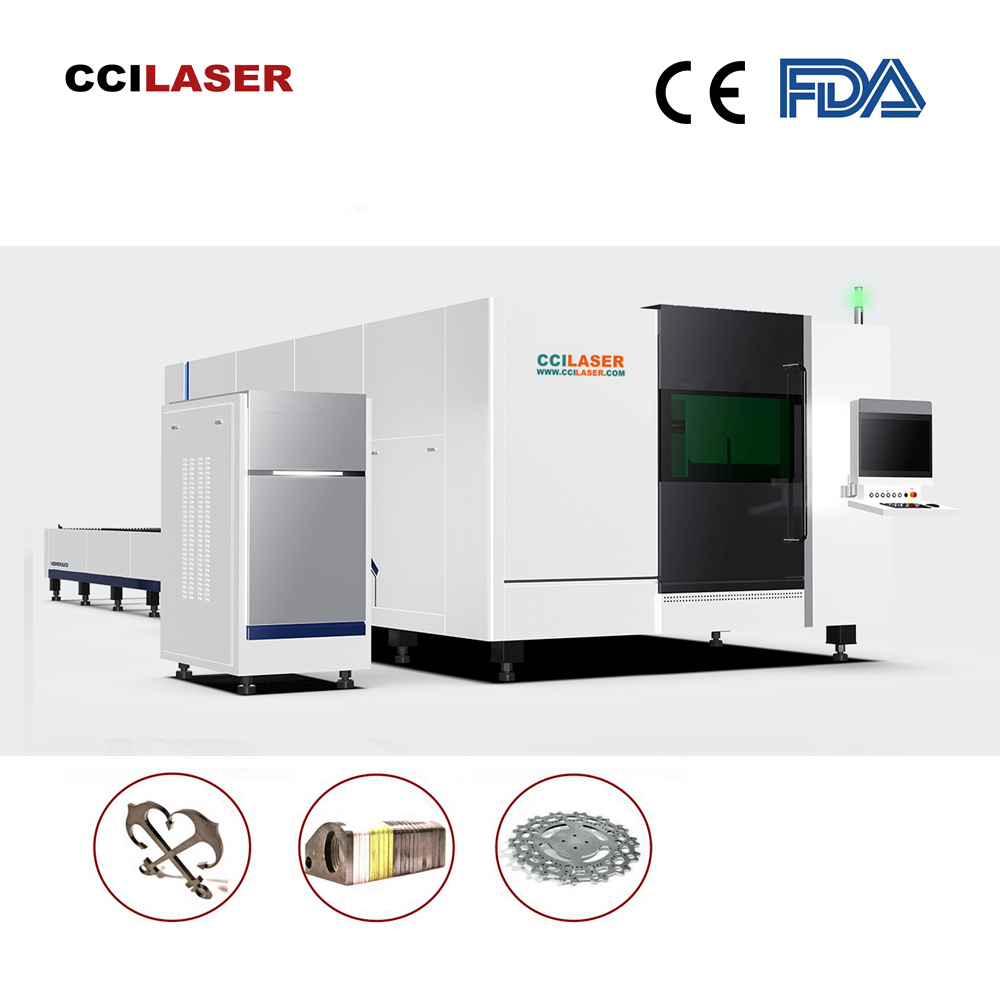

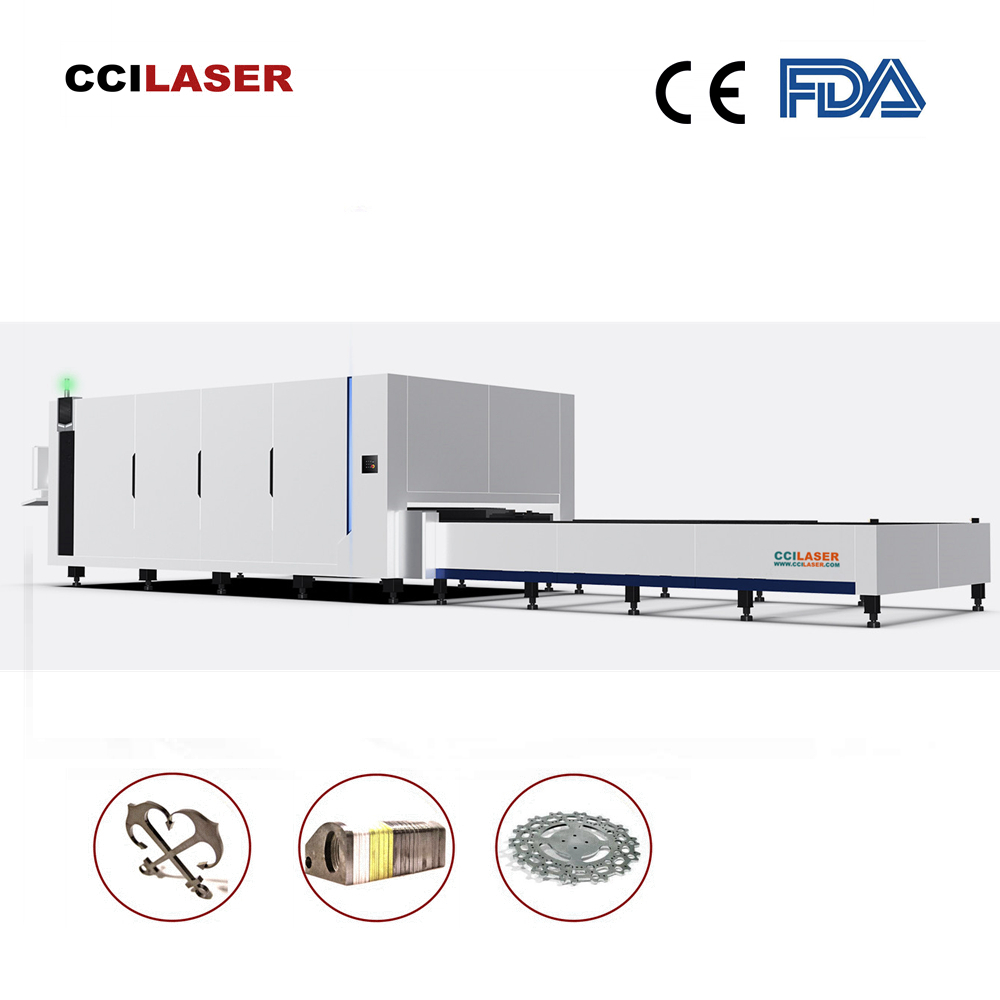

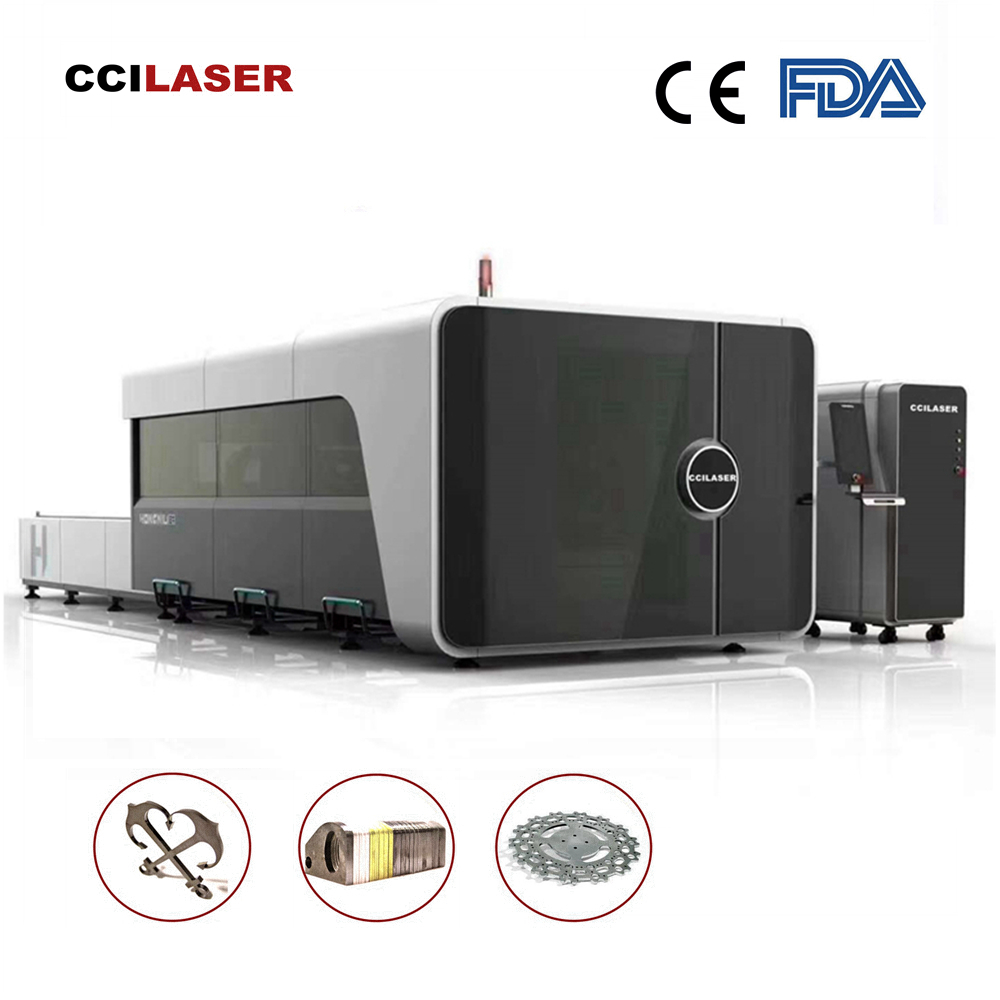

Name:Whole Cover Exchange Platform Fiber Laser Cutting Machine

Model:FLC-3015H


The CCILASER FLC-3015H whole cover exchange platform fiber laser cutting machine comes standard with 1000W IPG power with optional upgrades. Process stainless and carbon steel as well as aluminum, brass, titanium and more.

Application Industry:

Kitchenware, lamps, hardware cabinets, sheet metal processing, auto parts, air conditioners, elevators, hotel metal supplies, etc.


Main parts and brand as follows

   Fiber Laser

   IPG (U.S. made)

   Laser   Cutting Head

   RAYTOOL (Swiss made)

   Gear   & Rack

   YYC/PMI (China Taiwan   made)

   Lead   Rail

   HIWIN (China Taiwan made)

   Pneumatic Parts

   SMC (Japan made)

   Electric Parts

   SCHNEIDER (France made)

   Reducer

   MOTOREDUCER  (France made)

   CNC   System

   CYPCUT (China made)

   Servo   Motor & Driver

   YASKAWA (Japan made)

   Water   Chilling Unit

   S&A  (China made)


DESCRIPTION

Applications primarily suited for cutting stainless, carbon, aluminum, titanium, and other non-ferrous metals.

Mounted touch screen monitor and remote control for convenient interfacing.



Includes Free on site install and training

Limited Two (2) year Warranty covers laser machine parts.


SPECIFICATIONS

  Position Accuracy

  ±0.01mm/1000mm

  Re-position Accuracy

  ±0.03mm/1000mm

  Cutting   Area

  3000*1500mm/4000*2000mm/   6000*2000mm

  Fiber   Power

  U.S. made IPG 1000W-12000W

  Graphic   Format Support

  CAD, DXF and so on

  Motor   type

  AC Servo motors

  Transmission System

  Gantry Double Drive   Structure

  Material platform

  Saw Tooth Blade cutting   platform for metal cutting

  Venting   Attachments

  Air exhaust fans with   venting pipe

  Machine   Dimensions

  8500*2500*2150mm

  Net   Weight

  6500KG


WORKING CONDITION REQUIREMENT

   Electric

   Power Supply: 380V 50Hz/ 220V 60Hz

   The   stability of 3 phase voltage: +5%

   Output   voltage adjusting rate: less 2%

   Assisted Air

   Compressed air:   Purification and dry;

   O2: High purity;

   N2:  Purity no less than 99.9%;

   Metal Sheet

   homogeneous material;

   Neat & clean surface.

   Compressed Air

   Screw compressor (more   than 12Kg) with oil water separator and dryer.

   Air   storage tank Capacity: 1m3

   Water

   Purified water

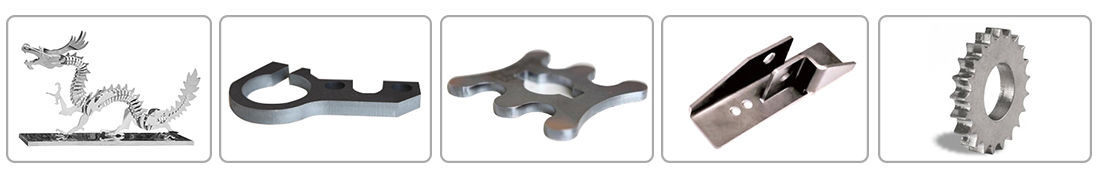

CUTTING  EFFECTS

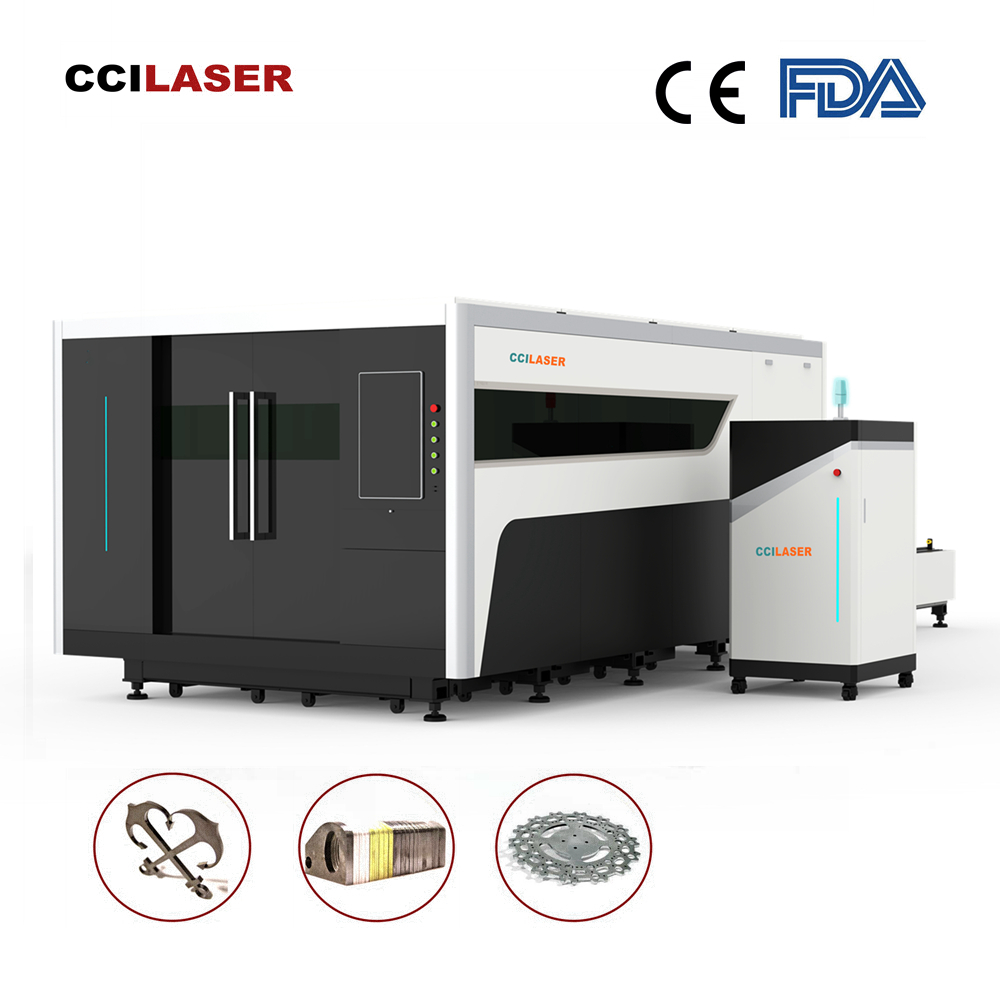

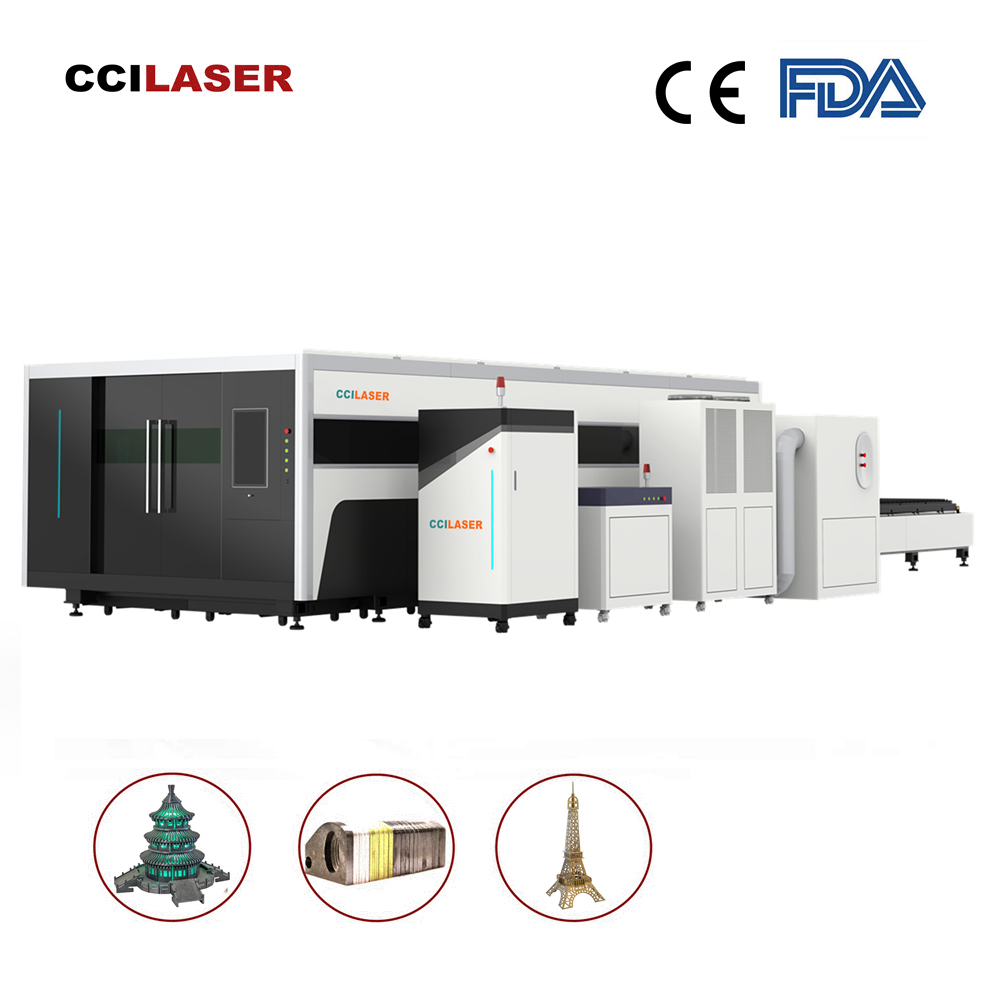

RELATED PRODUCTS
