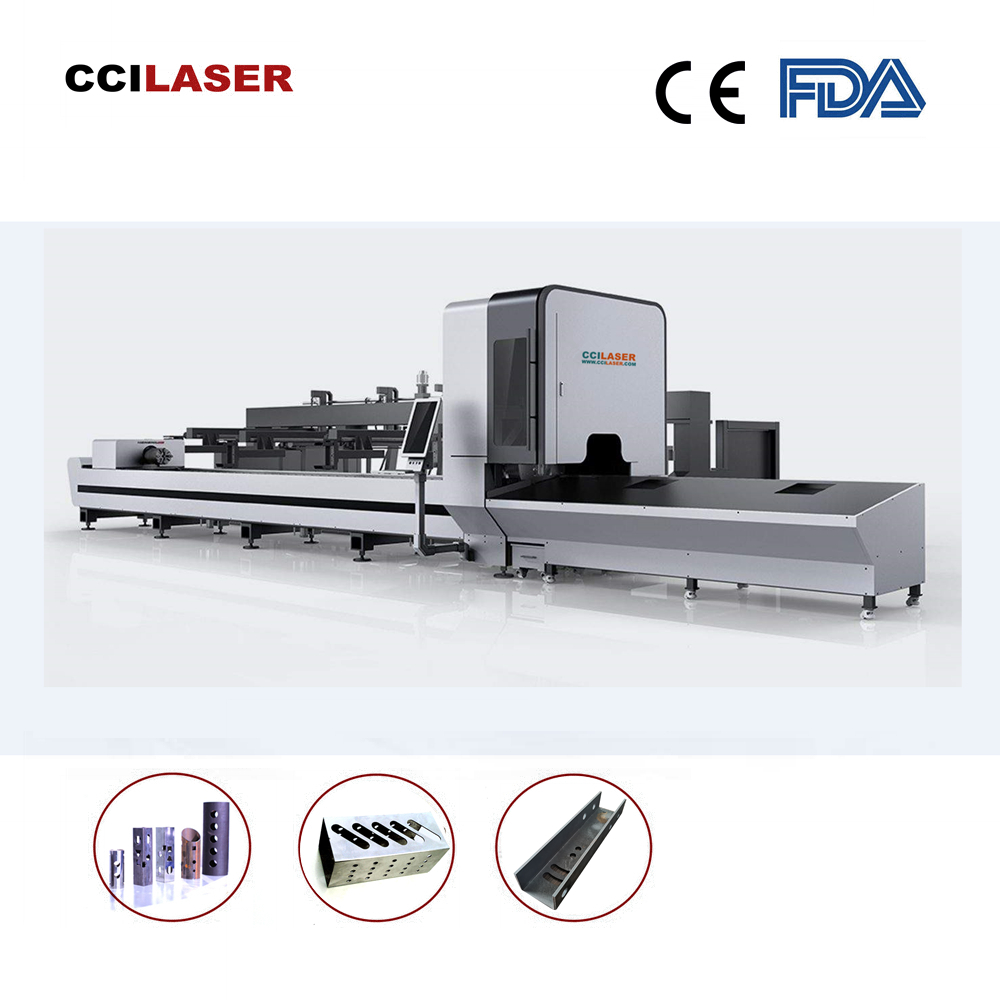

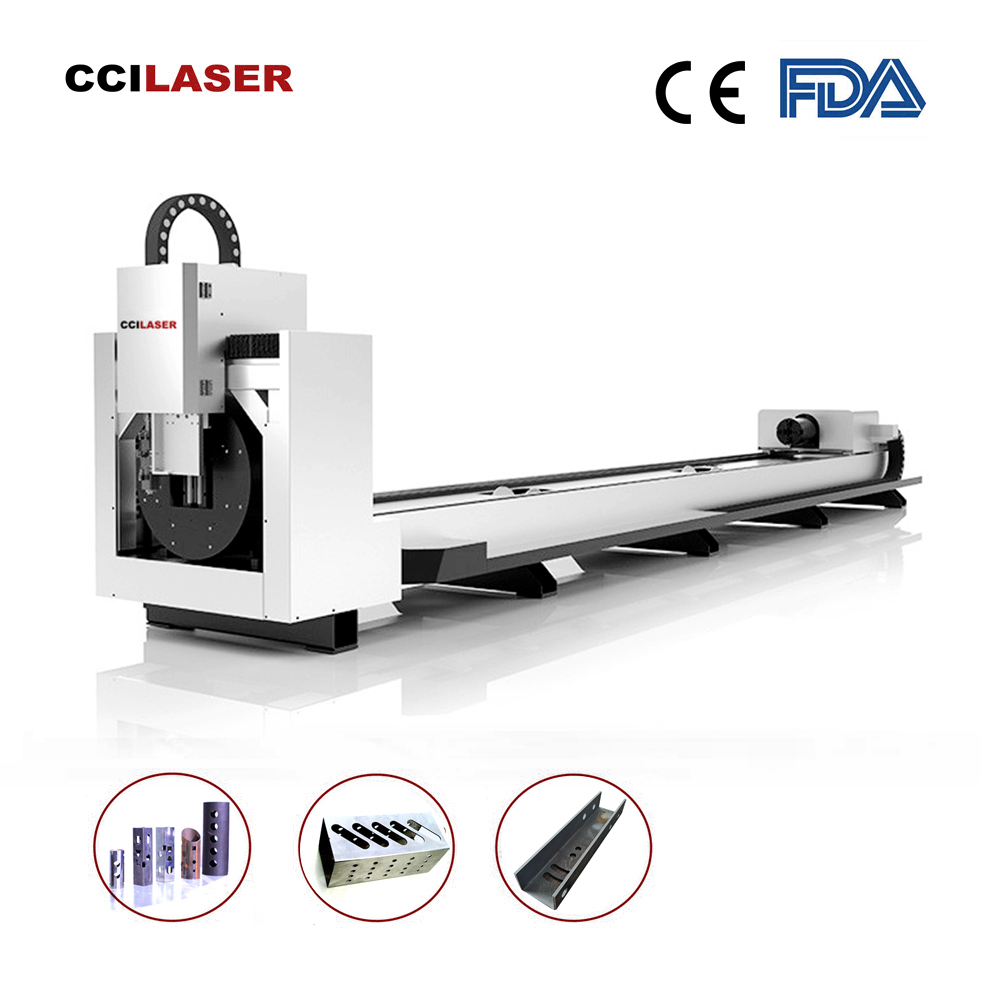

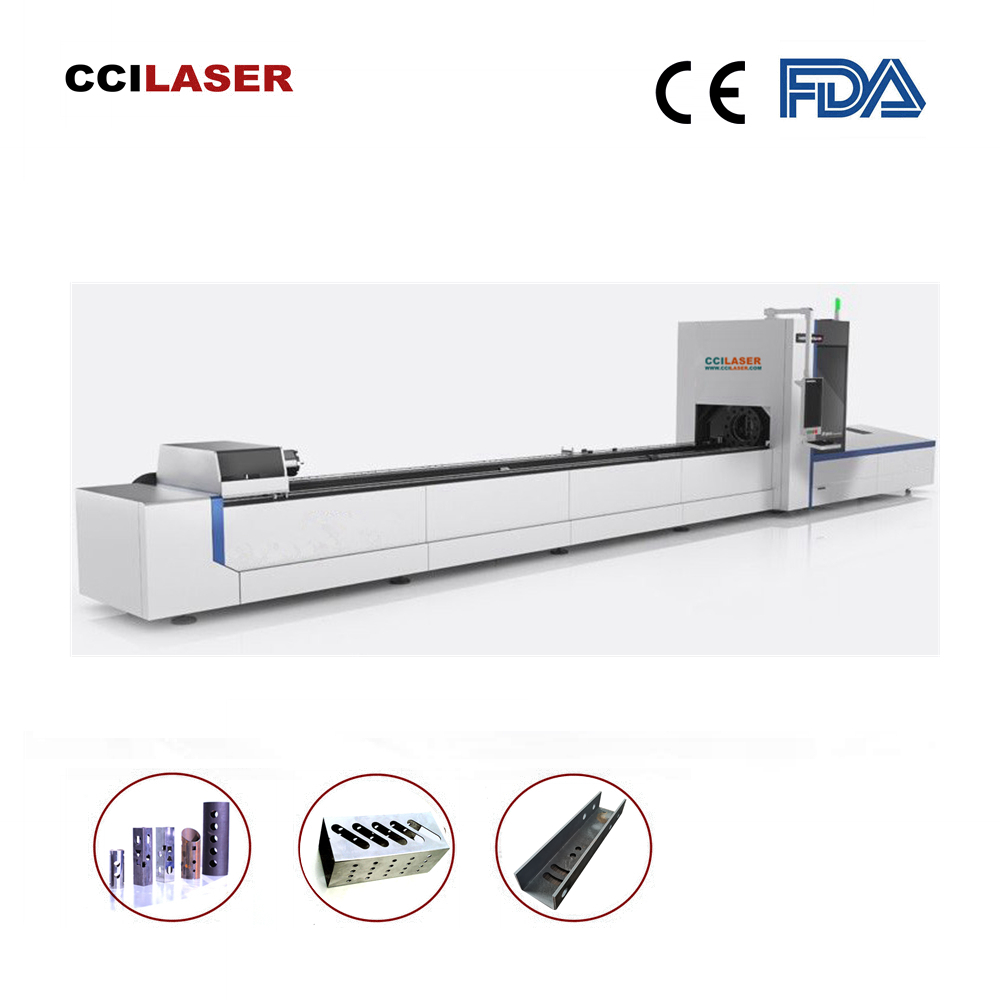

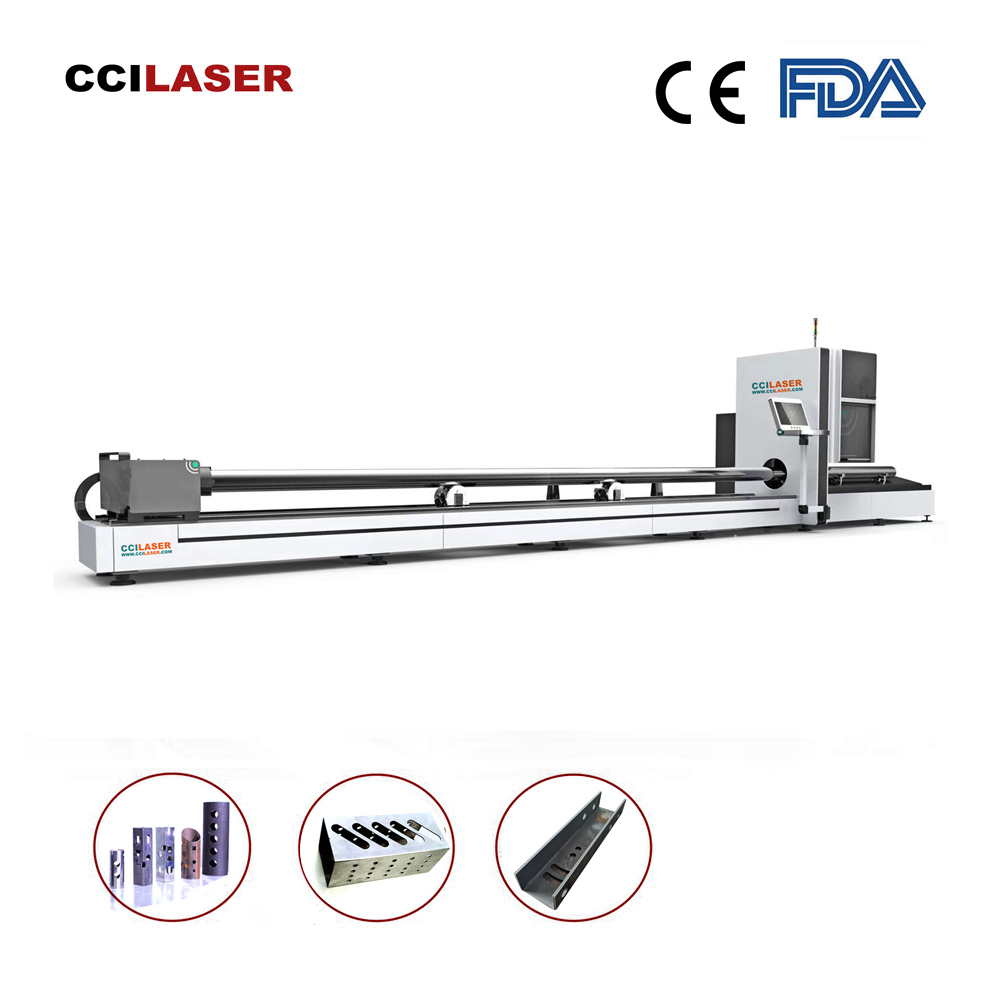

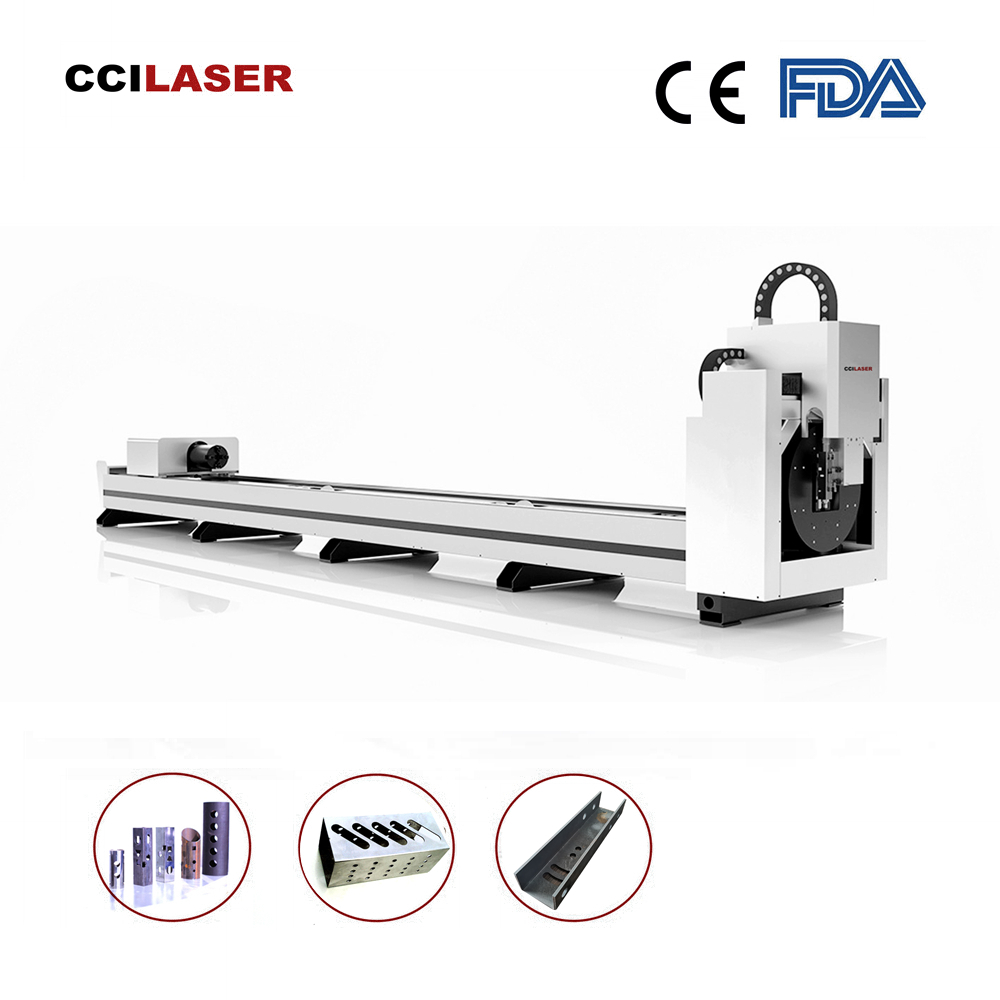

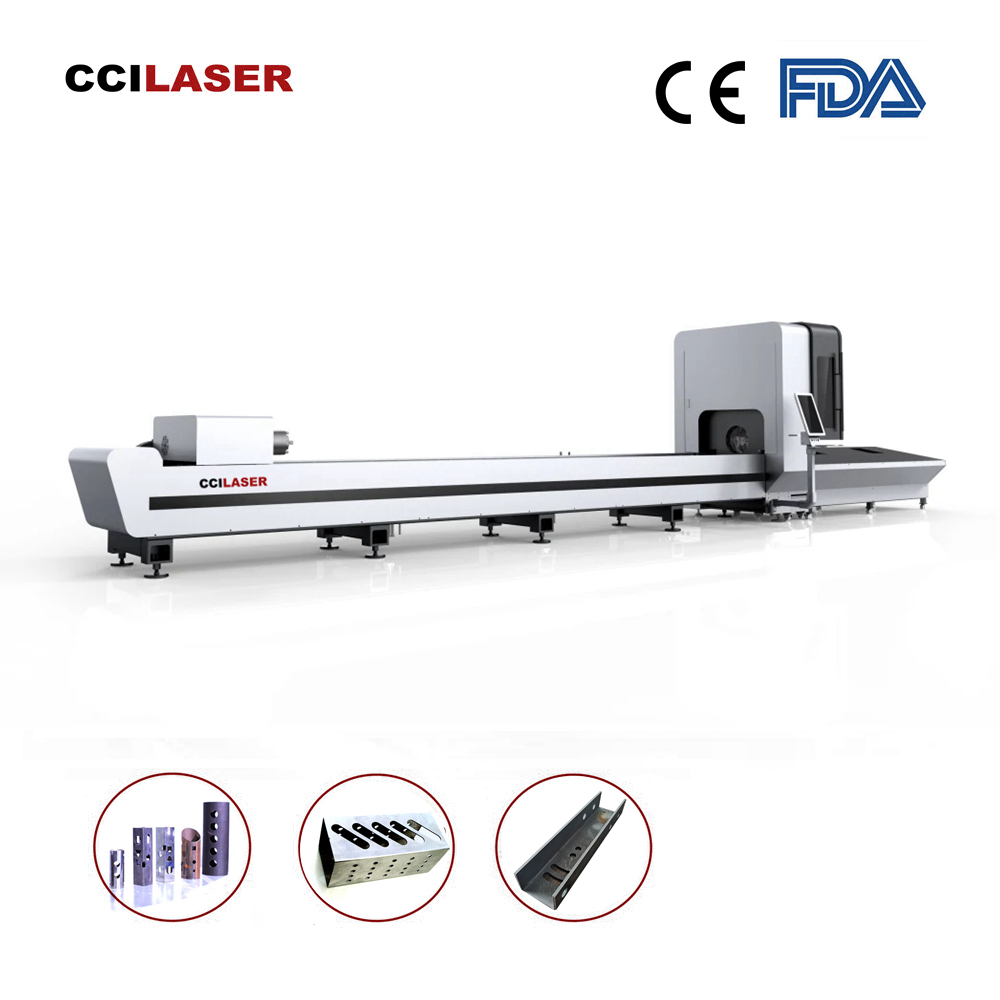

Name:Automatic Tube Fiber Laser Cutting Machine

Model:FLC-6020T/8020T

Linkage: Automatic Fiber Laser Cutting Machine for Metal Tube/ Pipe/ Channel Steel


The CCILASER FLC-6020T/8020T automatic tube fiber laser cutting machine comes standard with 1000W IPG power with optional upgrades. Process stainless and carbon steel as well as aluminum, brass, titanium and more.

Application Industry:

Kitchenware, lamps, hardware cabinets, sheet metal processing, auto parts, air conditioners, elevators, hotel metal supplies, etc.



Main parts and brand as follows

   Fiber Laser

   IPG (U.S. made)

   Laser   Cutting Head

   RAYTOOL (Swiss made)

   Gear   & Rack

   YYC/PMI (China Taiwan   made)

   Lead   Rail

   HIWIN (China Taiwan made)

   Pneumatic Parts

   SMC (Japan made)

   Electric Parts

   SCHNEIDER (France made)

   Reducer

   MOTOREDUCER  (France made)

   CNC   System

   CYPCUT (China made)

   Servo   Motor & Driver

   YASKAWA (Japan made)

   Water   Chilling Unit

   S&A  (China made)


DESCRIPTION

Applications primarily suited for cutting stainless, carbon, aluminum, titanium, and other non-ferrous metals.

Mounted touch screen monitor and remote control for convenient interfacing.

Includes Free on site install and training

Limited Two (2) year Warranty covers laser machine parts.


SPECIFICATIONS

   Metal Tube Cutting Length

   6000/8000mm

   Metal   Tube Cutting Diameter

   16-200mm

   Remaining Material

   More 220mm

   X axis   Travel Route

   6200/8200mm

   Y axis   Travel Route

   260mm

   Z axis   Travel Route

   150mm

   X/Y   Axis Location Precision

   ±0.05/1000mm

   X/Y   Axis Repeat Location Precision

   ±0.03/1000mm

   Max.   accelerated Velocity

   0.6G

   Max.   Feeding Speed

   60m/min

   Whole   Weight

   5500Kg

   Overall Dimension

   9600*2830*2400mm


WORKING CONDITION REQUIREMENT

   Electric

   Power Supply: 380V 50Hz/ 220V 60Hz

   The   stability of 3 phase voltage: +5%

   Output   voltage adjusting rate: less 2%

   Assisted Air

   Compressed air:   Purification and dry;

   O2: High purity;

   N2:  Purity no less than 99.9%;

   Metal Sheet

   homogeneous material;

   Neat & clean surface.

   Compressed Air

   Screw compressor (more   than 12Kg) with oil water separator and dryer.

   Air   storage tank Capacity: 1m3

   Water

   Purified water

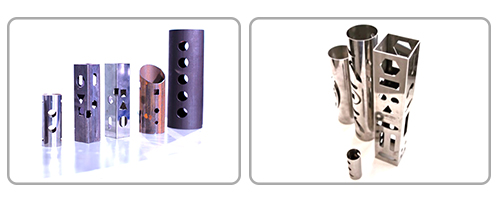

CUTTING  EFFECTS
