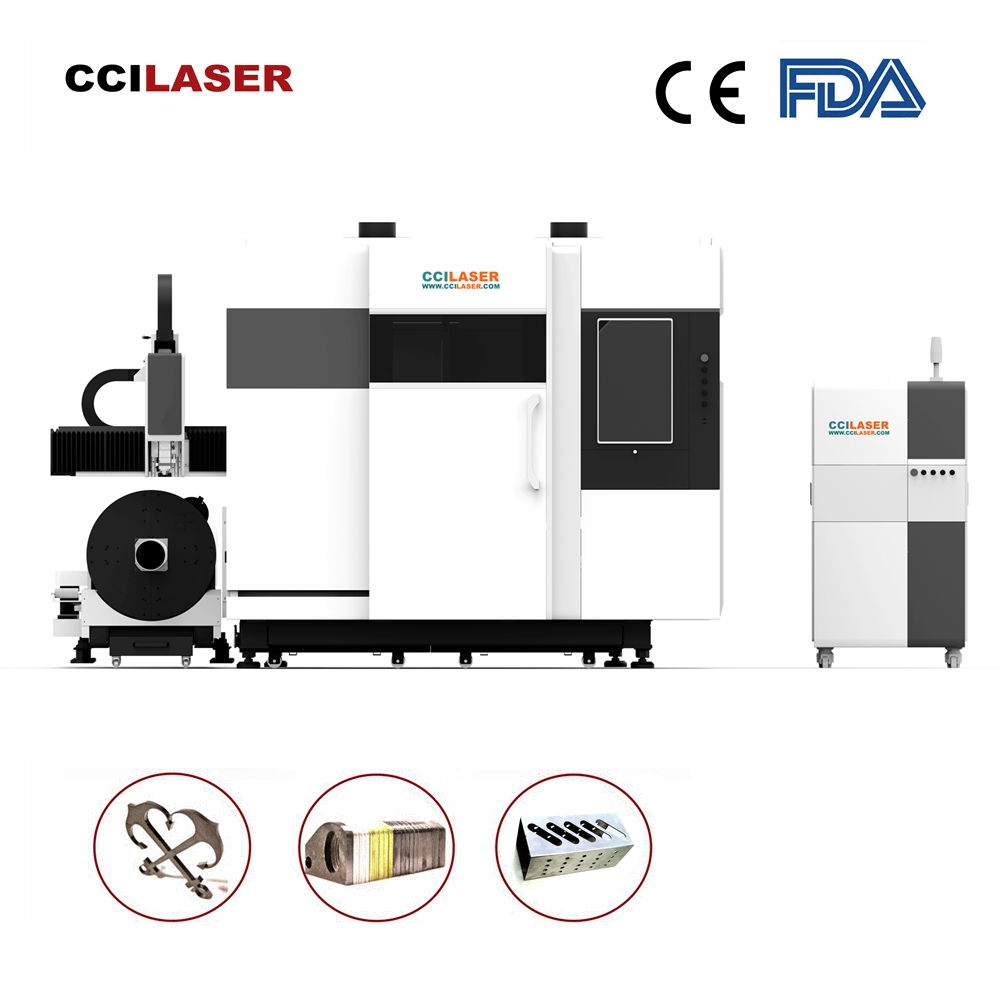

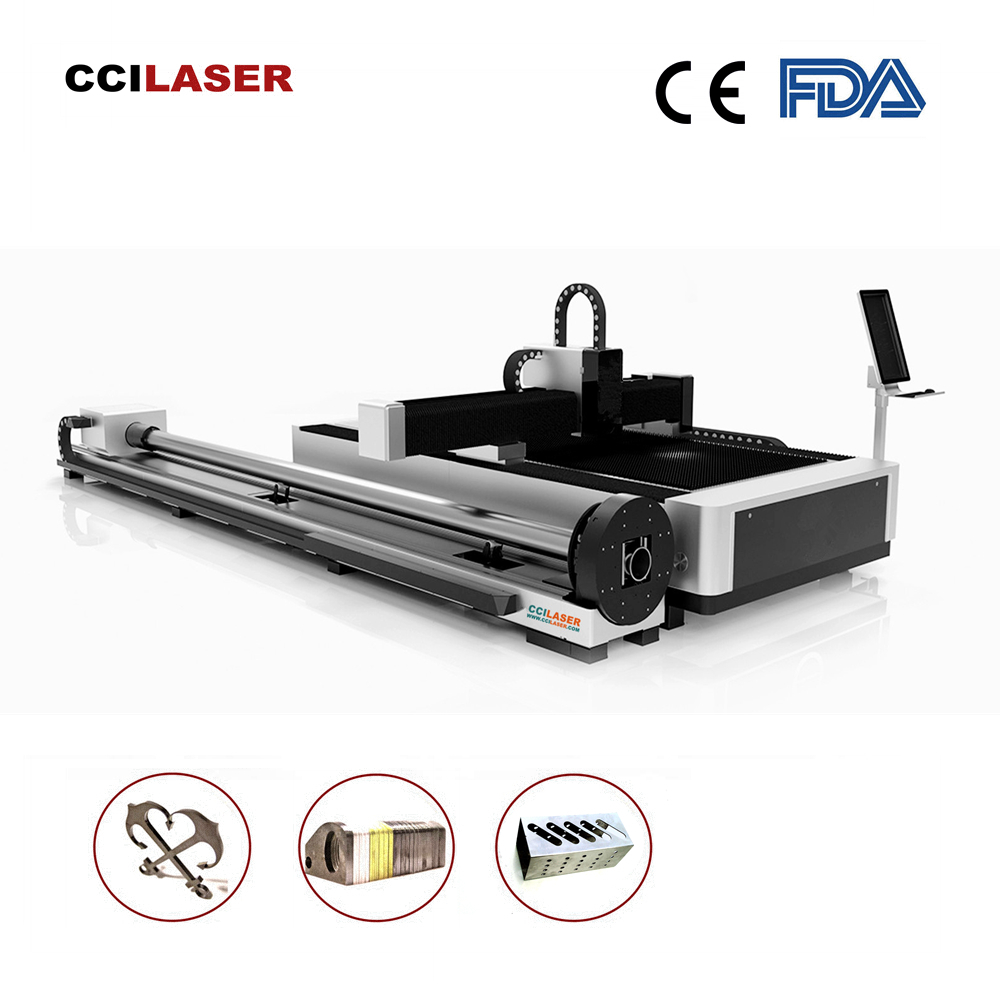

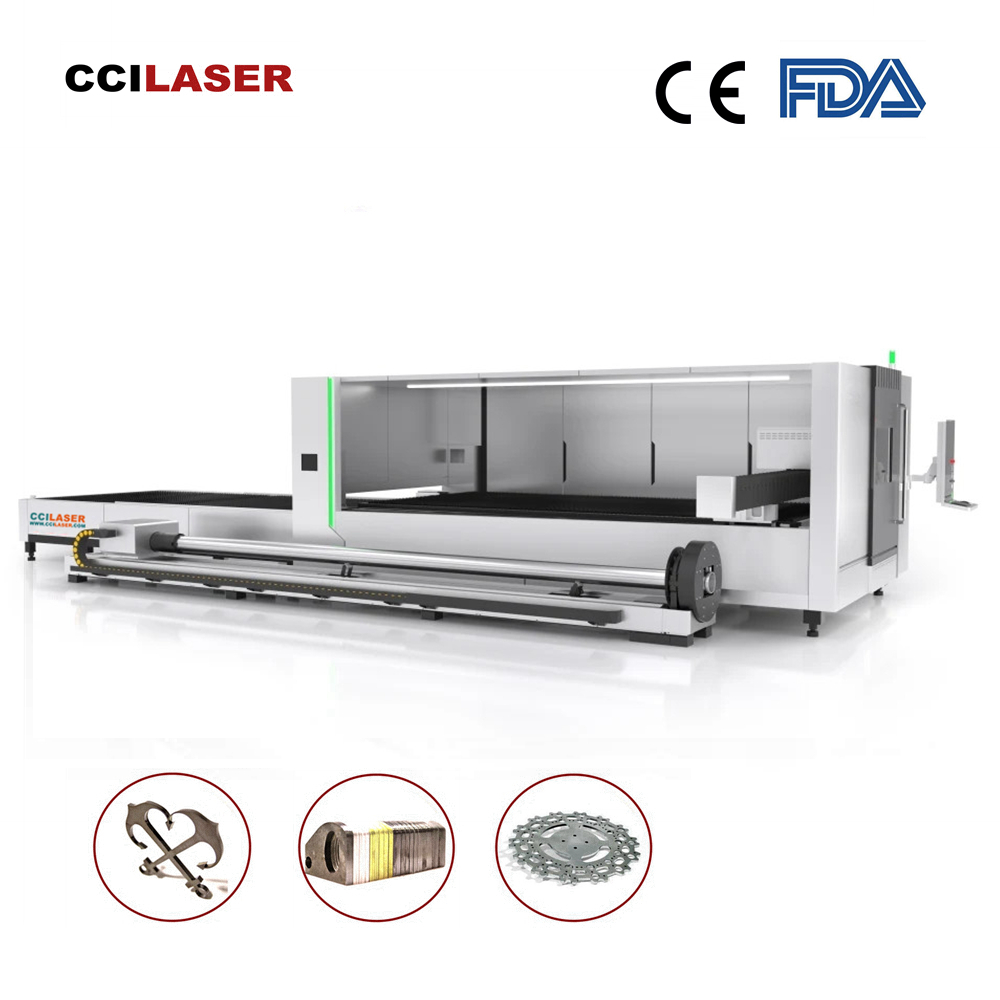

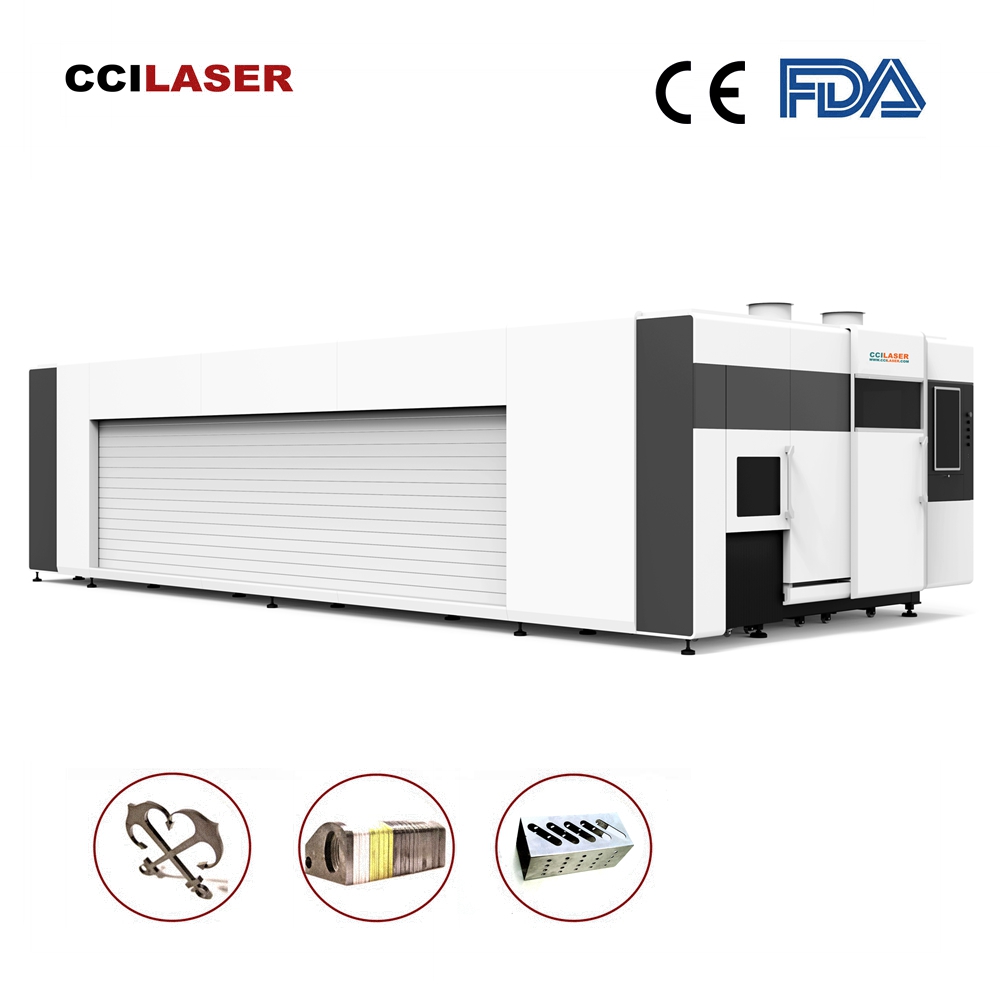

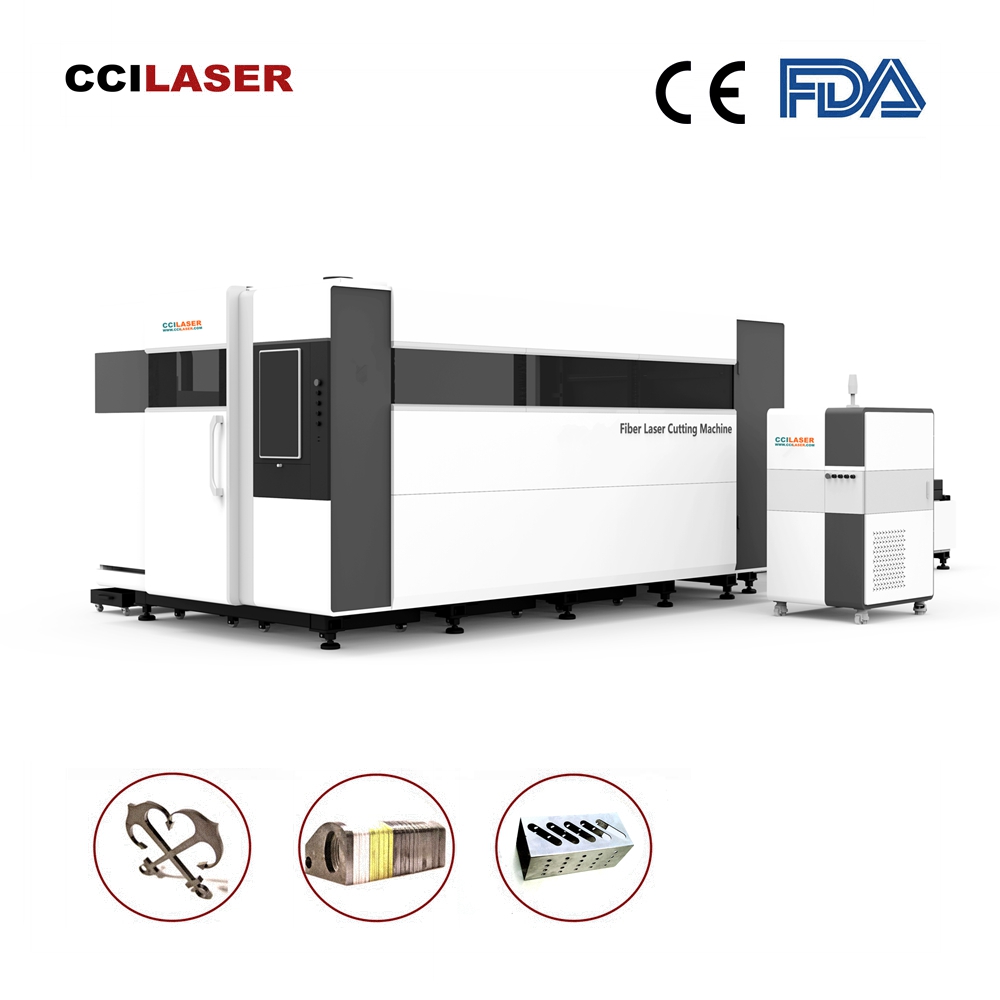

Name:Metal Pipe & Plate Fiber Laser Cutting Machine

Model:FLC-3015TP

Linkage: Fiber Laser Cutting Machine for Metal Tube and Metal Sheet


The CCILASER FLC-3015TP metal pipe & plate fiber laser cutting machine comes standard with 1000W IPG power with optional upgrades. Process stainless and carbon steel as well as aluminum, brass, titanium and more.

Application Industry:

Kitchenware, lamps, hardware cabinets, sheet metal processing, auto parts, air conditioners, elevators, hotel metal supplies, etc.


Main parts and brand as follows

   Fiber Laser

   IPG (U.S. made)

   Laser   Cutting Head

   RAYTOOL (Swiss made)

   Gear   & Rack

   YYC/PMI (China Taiwan   made)

   Lead   Rail

   HIWIN (China Taiwan made)

   Pneumatic Parts

   SMC (Japan made)

   Electric Parts

   SCHNEIDER (France made)

   Reducer

   MOTOREDUCER  (France made)

   CNC   System

   CYPCUT (China made)

   Servo   Motor & Driver

   YASKAWA (Japan made)

   Water   Chilling Unit

   S&A  (China made)


DESCRIPTION

Applications primarily suited for cutting stainless, carbon, aluminum, titanium, and other non-ferrous metals.

Mounted touch screen monitor and remote control for convenient interfacing.



Includes Free on site install and training

Limited Two (2) year Warranty covers laser machine parts.


SPECIFICATIONS

   Position Accuracy

   ±0.01mm/1000mm

   Re-position Accuracy

   ±0.03mm/1000mm

   Cutting Area

   3000*1500mm/4000*2000mm/   6000*2000mm

   Fiber   Power

   U.S. made IPG   1000W-12000W

   Graphic Format Support

   CAD, DXF and so on

   Motor   type

   AC Servo motors

   Transmission System

   Gantry Double Drive   Structure

   Material platform

   Saw Tooth Blade cutting   platform for metal cutting

   Venting Attachments

   Air exhaust fans with   venting pipe

   Machine Dimensions

   4340*2800*1550mm

   Net   Weight

   5500KG


WORKING CONDITION REQUIREMENT

   Electric

   Power Supply: 380V 50Hz/ 220V 60Hz

   The   stability of 3 phase voltage: +5%

   Output   voltage adjusting rate: less 2%

   Assisted Air

   Compressed air:   Purification and dry;

   O2: High purity;

   N2:  Purity no less than 99.9%;

   Metal Sheet

   homogeneous material;

   Neat & clean surface.

   Compressed Air

   Screw compressor (more   than 12Kg) with oil water separator and dryer.

   Air   storage tank Capacity: 1m3

   Water

   Purified water

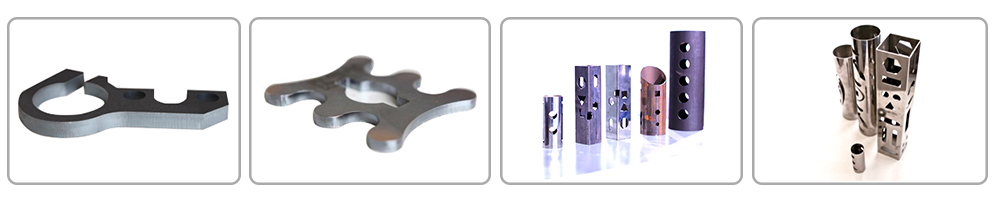

CUTTING  EFFECTS
