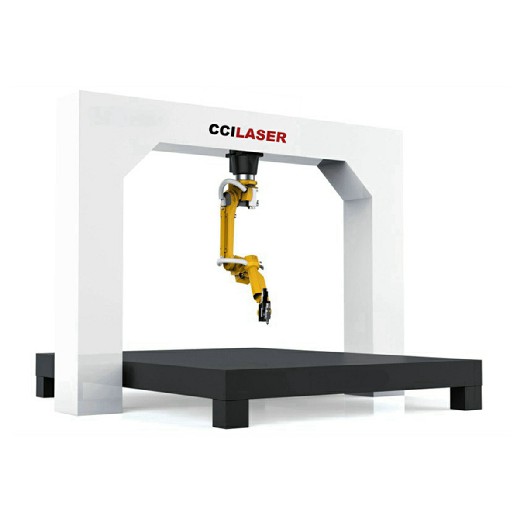

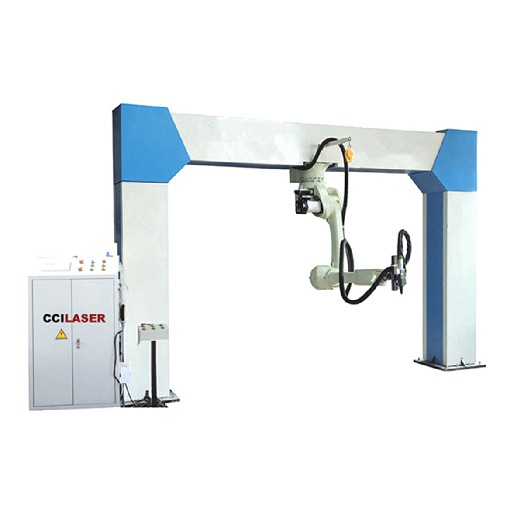

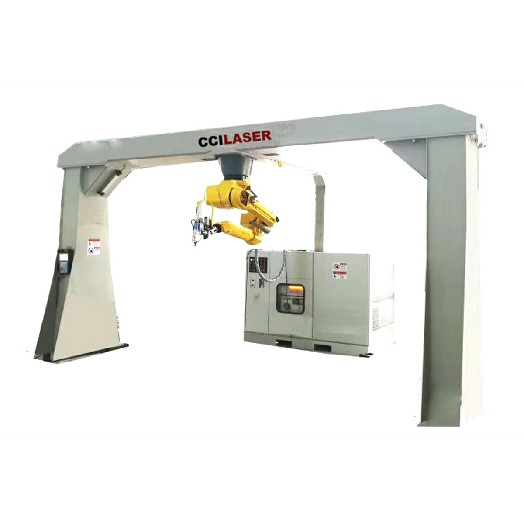

Name:Fiber Laser Cutting Robot

Model:FLC-3D


The CCILASER FLC-3D fiber laser cutting robot comes standard with 1000W IPG power with optional upgrades. Process stainless and carbon steel as well as aluminum, brass, titanium and more.

Application Industry:

Sheet metal processing, auto parts, air conditioners, elevators,aerospace, etc.


Main parts and brand as follows

  Fiber Laser

  IPG (U.S. made)

  Laser   Cutting Head

  RAYTOOL (Swiss made)

  Industry Robot

  Kawaaki  (Japan made)

  CNC   System

  Kawaaki (Japan made)

  Servo   Motor & Driver

  Kawaaki (Japan made)

  Water   Chilling Unit

  S&A  (China made)


DESCRIPTION

Applications primarily suited for cutting stainless, carbon, aluminum, titanium, and other non-ferrous metals.

Includes Free on site install and training

Limited Two (2) year Warranty covers laser machine parts.


SPECIFICATIONS

  Cutting Scope

  3.6*1.6m   (Diameter*Vertical Height)

  X/Y   Axis Repeated Location Accuracy

  ±0.05mm/m

  Output   Power Rate

  3000W

  Central   Wavelength

  1080nm

  Machine   Weight

  3500Kg

  Worktable Loading Weight

  1200Kg

  Robot   Arm Radius

  1.9m

  Whole   Dimension

  4.7*2.9m (Width*Height)

  Inner   Dimension

  4*2.57m (Width* Height)


WORKING CONDITION REQUIREMENT

  Electric

  Power Supply: 380V 50Hz/ 220V 60Hz

  The   stability of 3 phase voltage: +5%

  Output   voltage adjusting rate: less 2%

  Assisted Air

  Compressed air:   Purification and dry

  O2: High purity

  N2:  Purity no less than 99.9%

  Metal Sheet

  homogeneous material

  Neat & clean surface.

  Compressed Air

  Screw compressor (more   than 12Kg) with oil water separator and dryer.

  Air   storage tank Capacity: 1m3

  Water

  Purified water

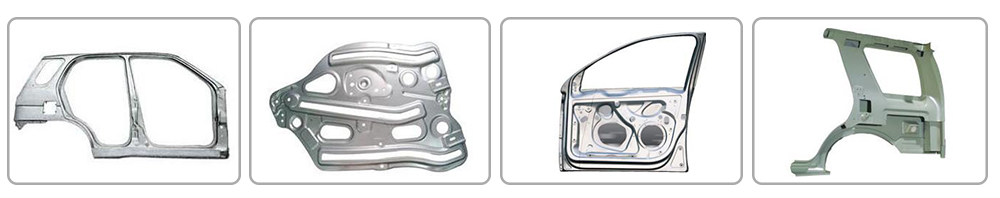

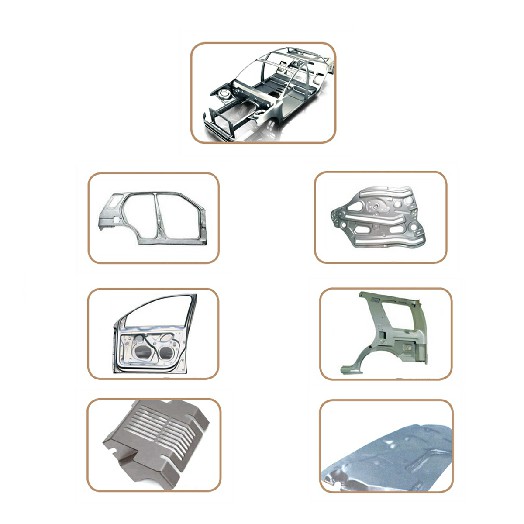

CUTTING  EFFECTS
