Name:UV Laser Marking Machine

Model:UV

Linkage: UV Laser Marking Machine

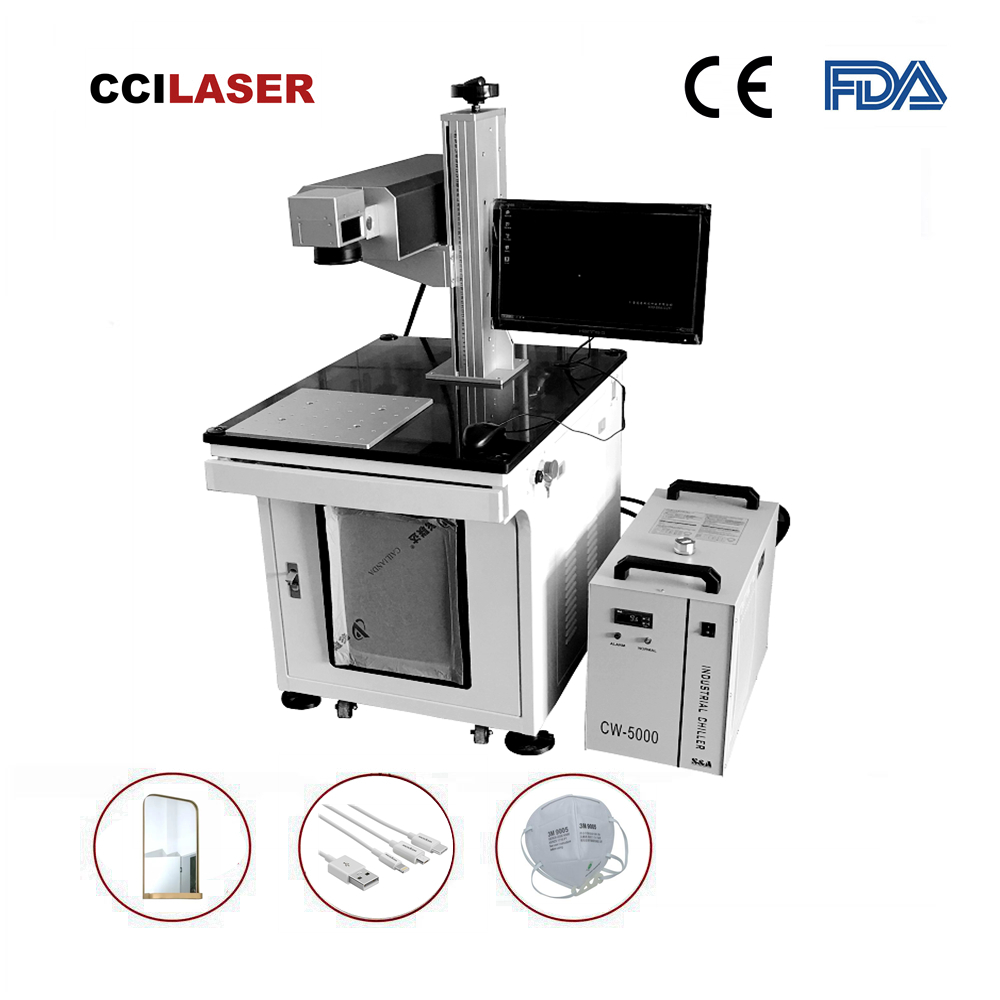

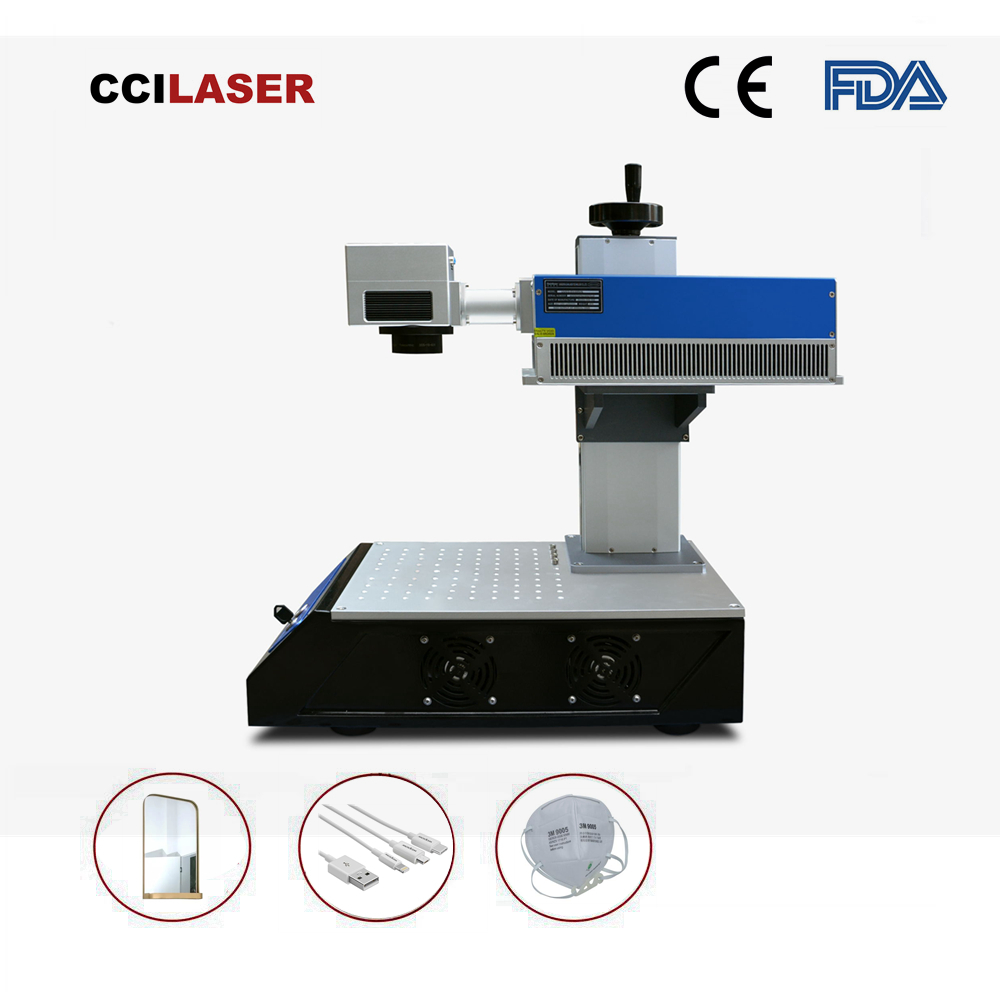

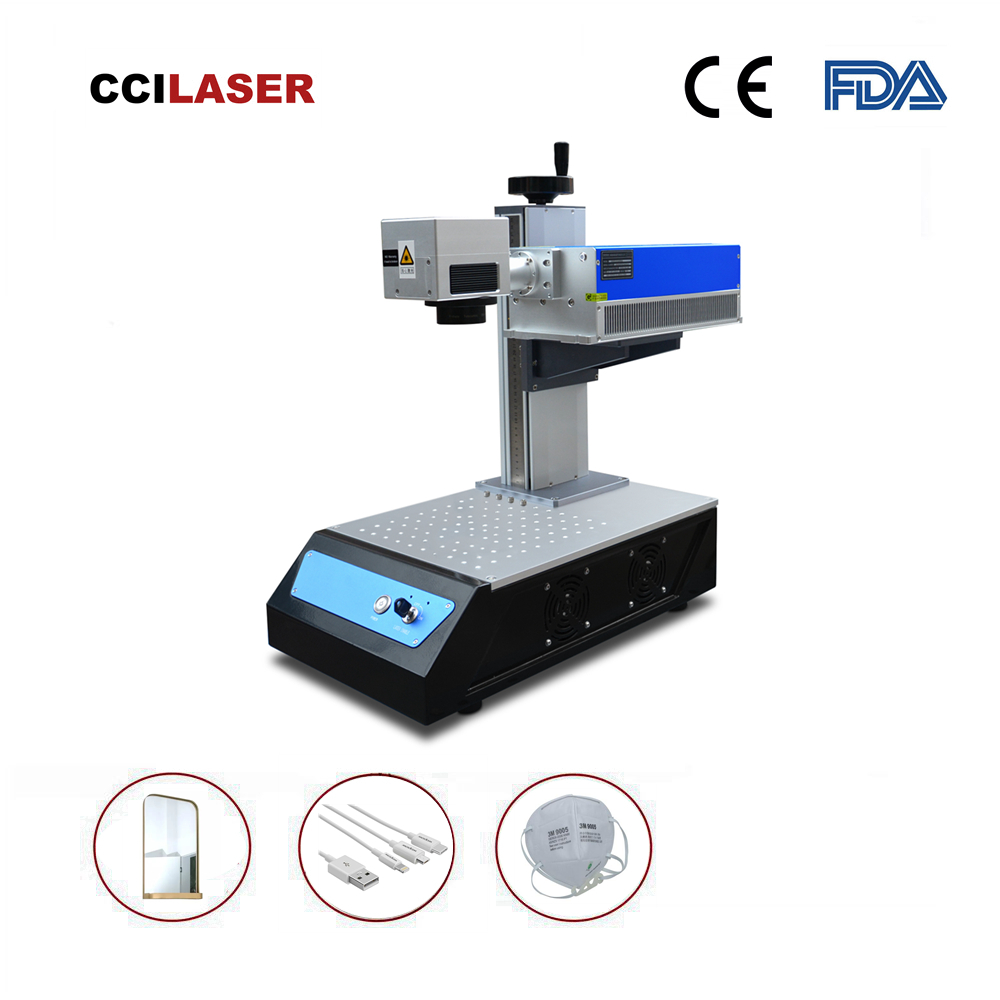

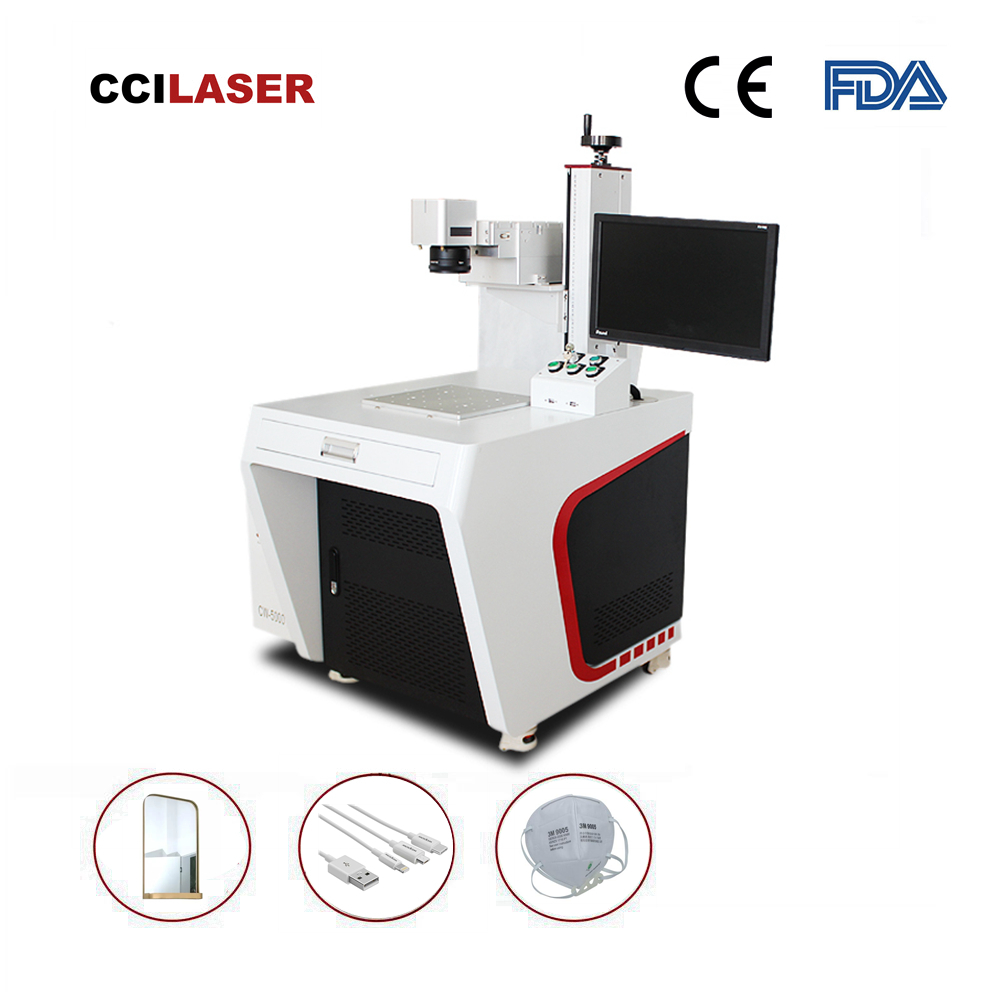

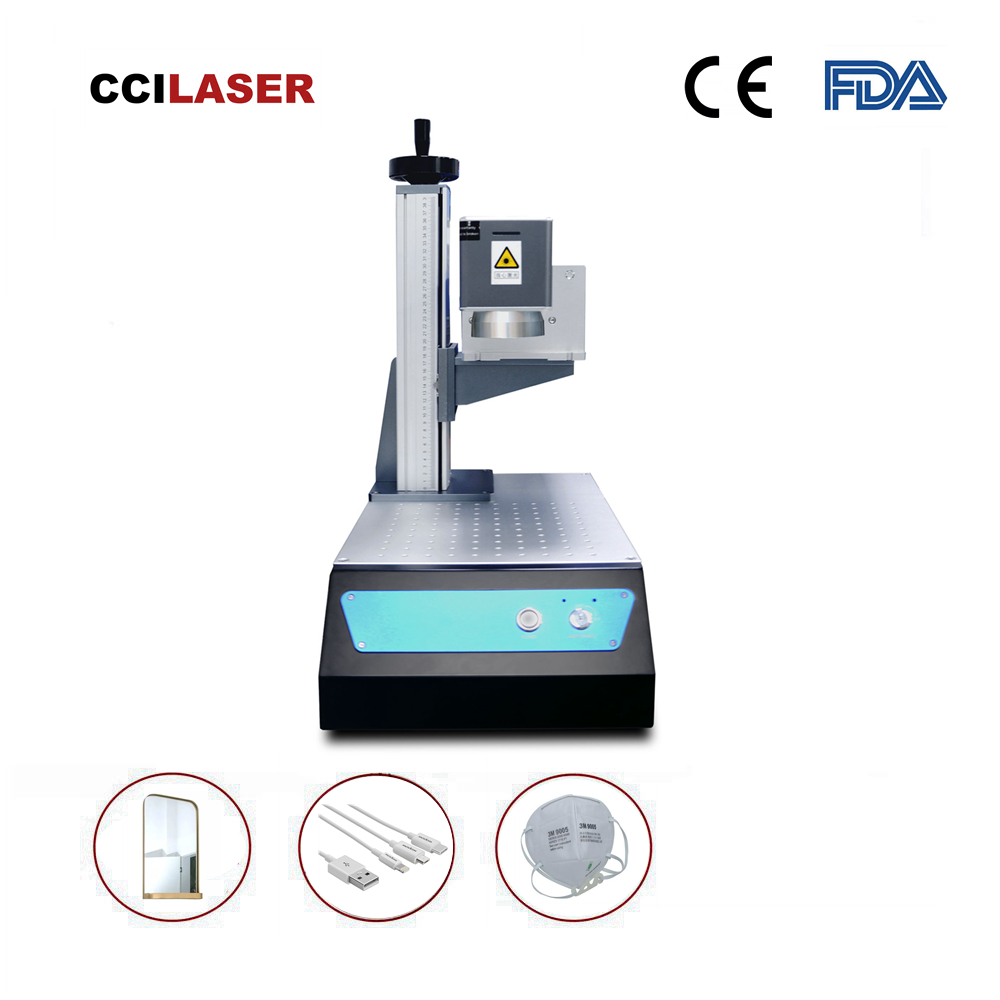

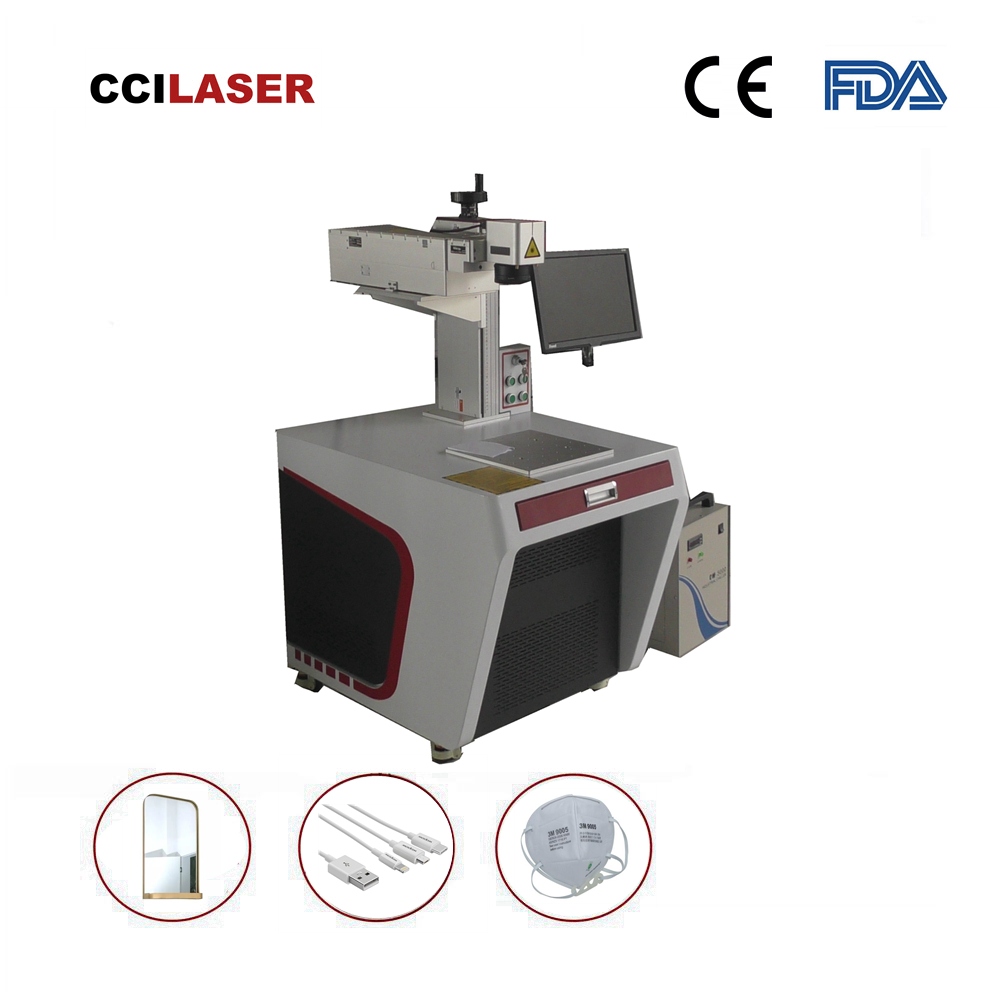

The CCILASER UV Laser Marking Machine comes standard with 3W HUARAY power with optional upgrades. The UV laser marking machine adopts the top 355nm UV laser wave band processing industry.

The 355nm UV laser wave band is applied to fine marking, fine cutting and micro processing for special materials.

It can reduce the influence of deformation and heat effect of processing materials to the greatest extent. It is mainly used in various glass, liquid crystal screen, textile, thin ceramic, semiconductor silicon, and IC grain, sapphire, polymer film and etc.



Application Industry:

Packaging surfaces for cosmetics, pharmaceuticals, food, and other polymer materials; marking and scribing of flexible PCB;

Microwaving of silicon wafers;

Mark the metal surfaces, plastic buttons, plastics (PC, PVC, PE, etc.)

Ultra precise mark the electronic components, household appliances, gifts, communication equipment, and building materials.


Main parts and brand as follows

   Fiber Laser

   HUARAY/ JPT (China made)

   Galvanometer Scanner

   SINO-GALVO (China made)

   System

   BJJCZ (China made)

   Filed   Lens

   RONAR-SMITH/ WAVELENGTH (Singapore made)


DESCRIPTION

355nm UV wave band and cold light source;

Narrow pulse width and high peak power;

It is most suitable for sensitive material marking processing work;

Air cooled maintenance-free design, which is long working life;

Excellent beam quality is suitable for all types of fine marking;

The laser acts directly on the molecular chain of the material which is maximum avoidance of heat effect.


SPECIFICATIONS

Model

UV3

UV5

UV12

Average Output Rate

3W

5W

12W

Wave Length

355nm

Pulse Repetition Frequency

20-200KHz

20-200KHz

50-200KHz

Marking Scope

105*105mm ; 145*145mm

Marking Line Width

Less than 0.01mm

0.02mm (Accord to each material)

Marking Line Speed

≤7000mm/s

Power Supply

AC220/110V±15%  50/60Hz

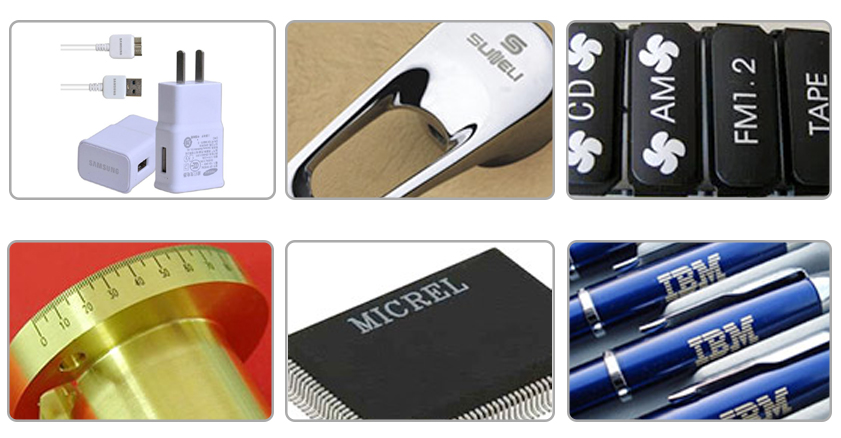

MARKING  EFFECTS
