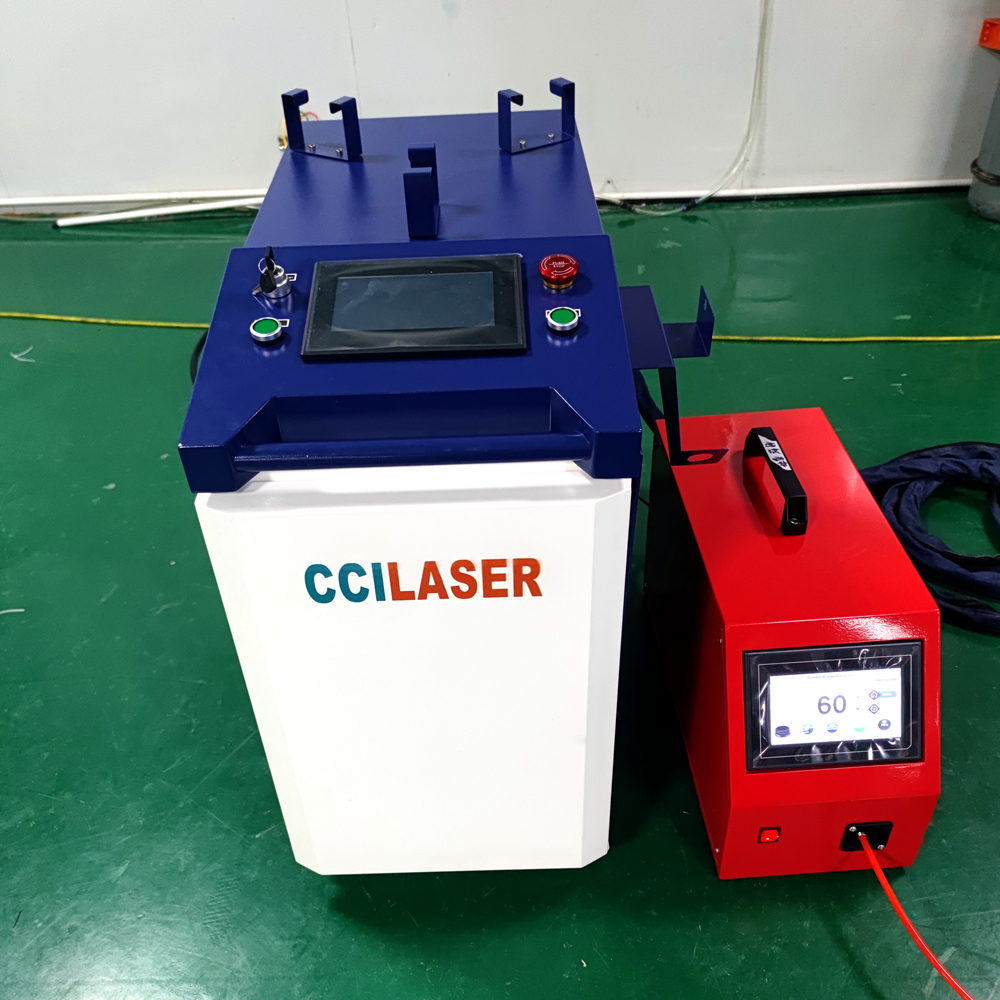

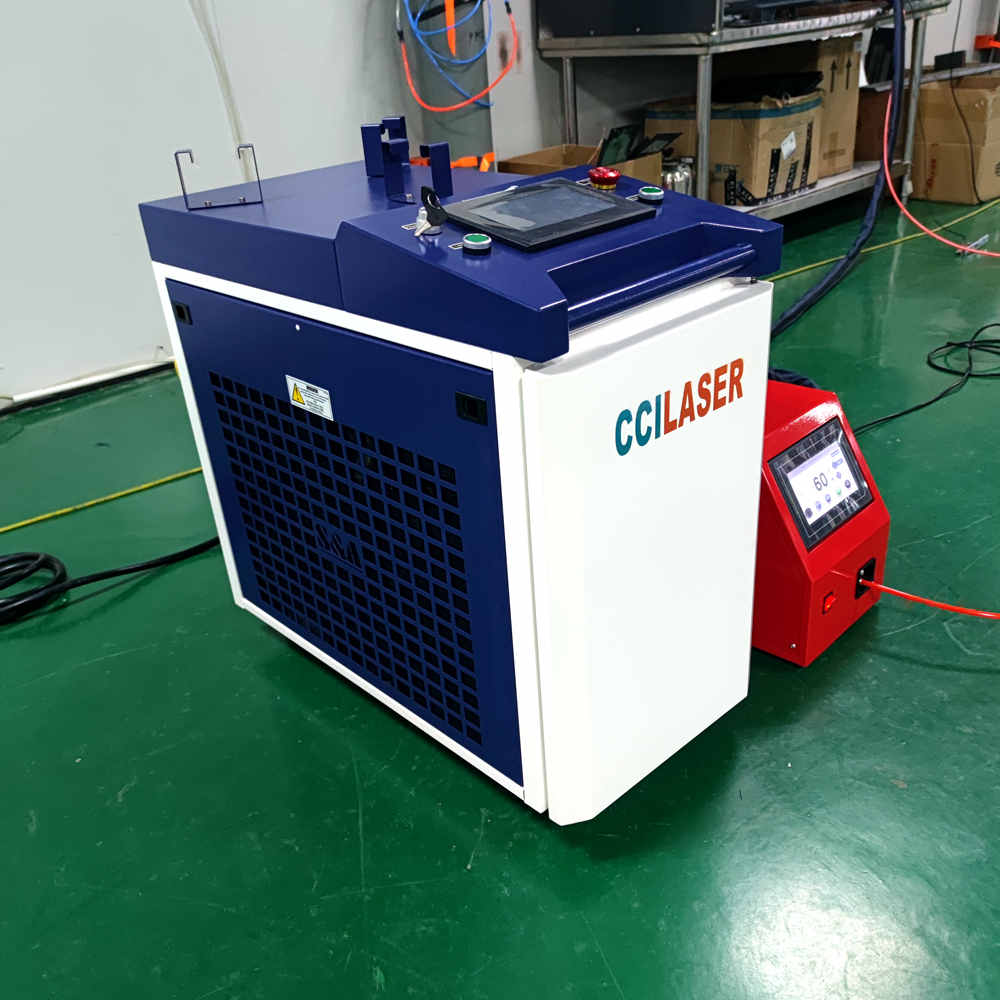

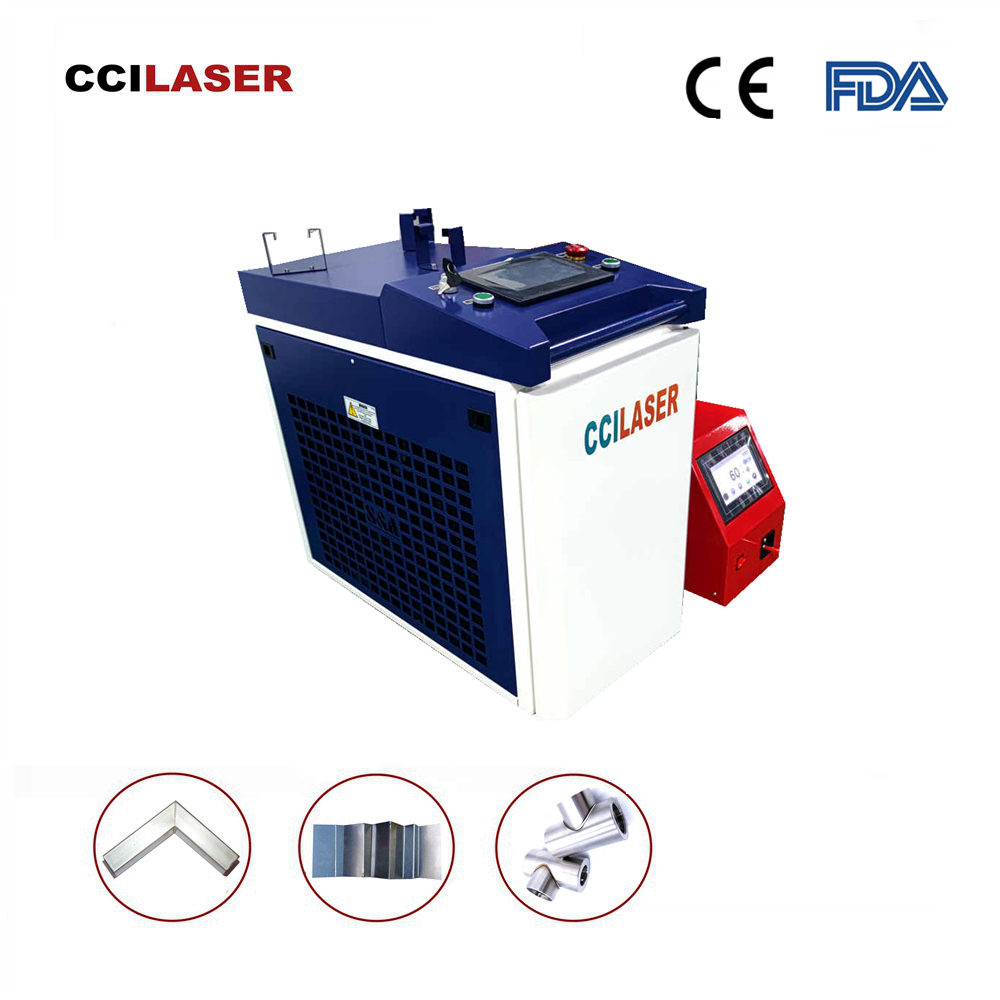

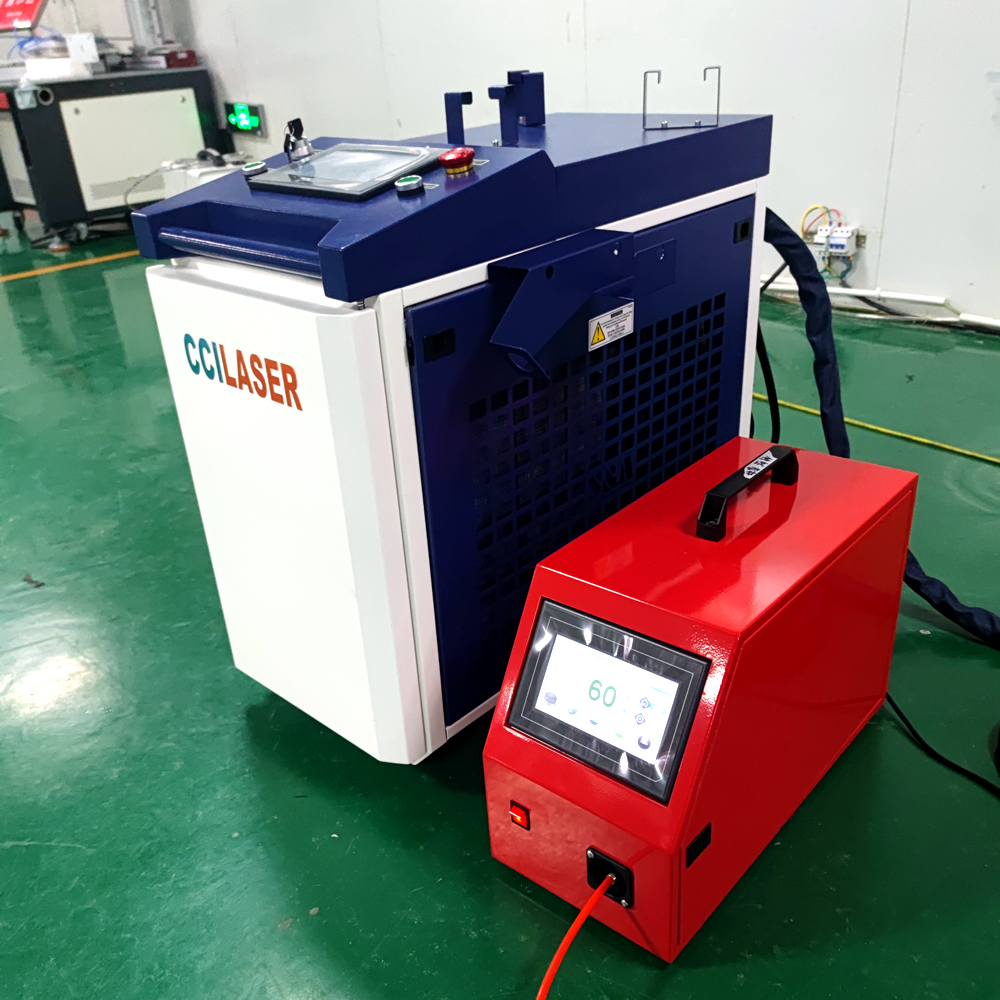

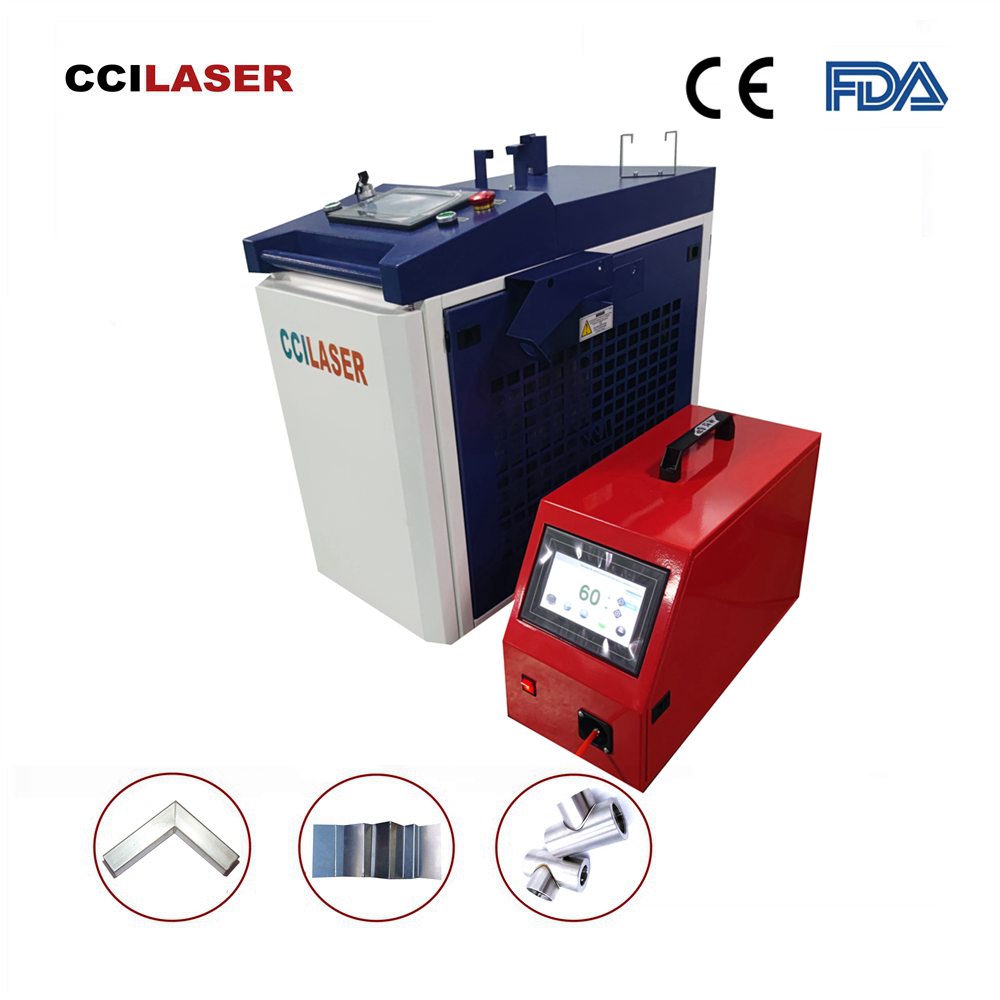

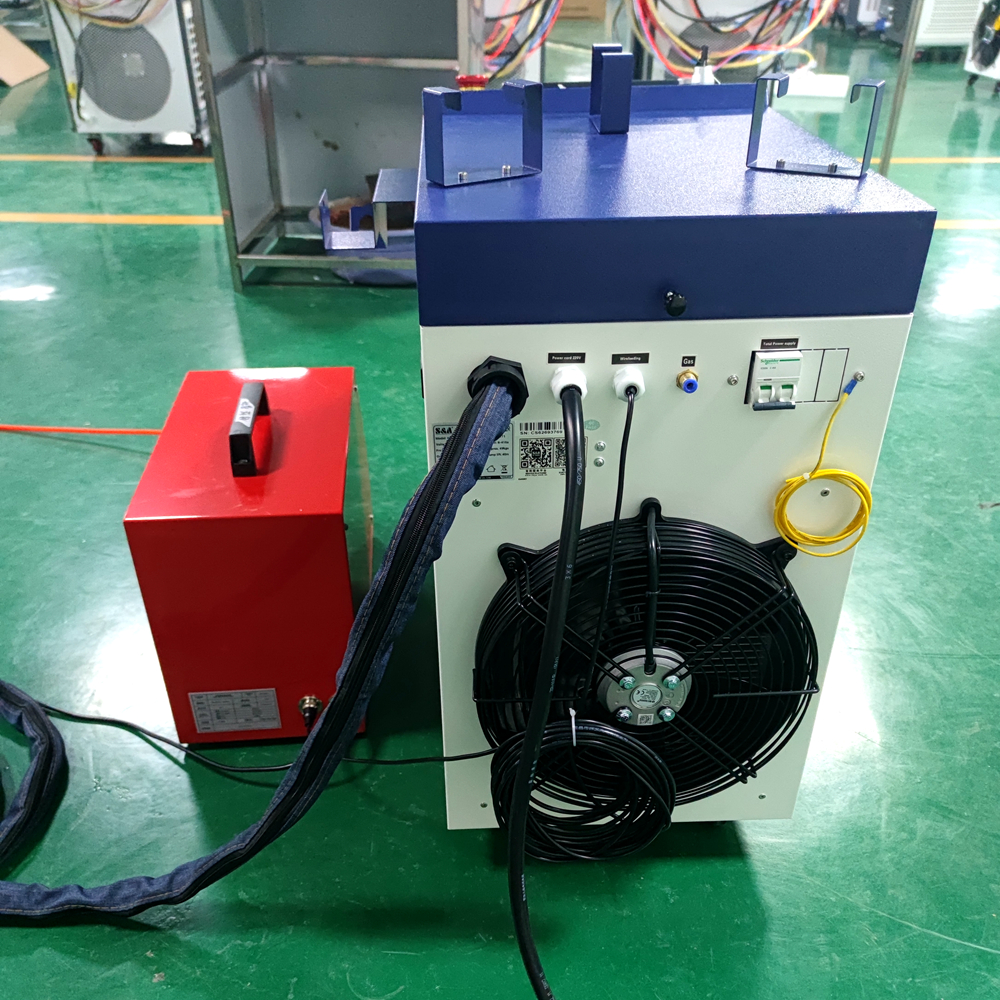

Fiber Laser Welding Machine 4 in 1

Name：3 in 1/ 4 in 1/ 5 in 1 laser machine

Model：LW-1500/ LW-2000/ LW-3000

Machine Video Linkage: 4 in 1 Laser Machine Video

The CCILASER LW-1500/ LW-2000/LW-3000 fiber laser machine is used for welding, surface cleaning, cutting and etc.

Machine Feature:

Ø Laser welding machine is one kind of processing method of welding materials with high energy density laser beam as heating source. It has the advantages of simple operation, beautiful weld seam, fast welding speed and no consumables.

Ø In recent years, due to the continuous development of materials, technology and fabrication process, laser welding has been widely used in the welding of plastics, metals, etc. Besides, the laser welding machine will replace traditional welding methods ( such as argon arc welding) in automobiles, sensors, electronics industry.

Ø Hand-held laser welding machine install hand-held welding head, which is similar with argon arc welding machine. It is flexible and simple operation, suitable for small batches orders. The laser welding machine can be widely used in cabinet kitchen and bathroom, stair elevator, shelf, Oven, stainless steel door and window guardrails, distribution boxes, stainless steel home and other industries complex and irregular welding process.

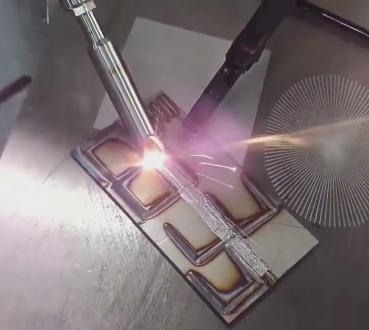

Application Case:

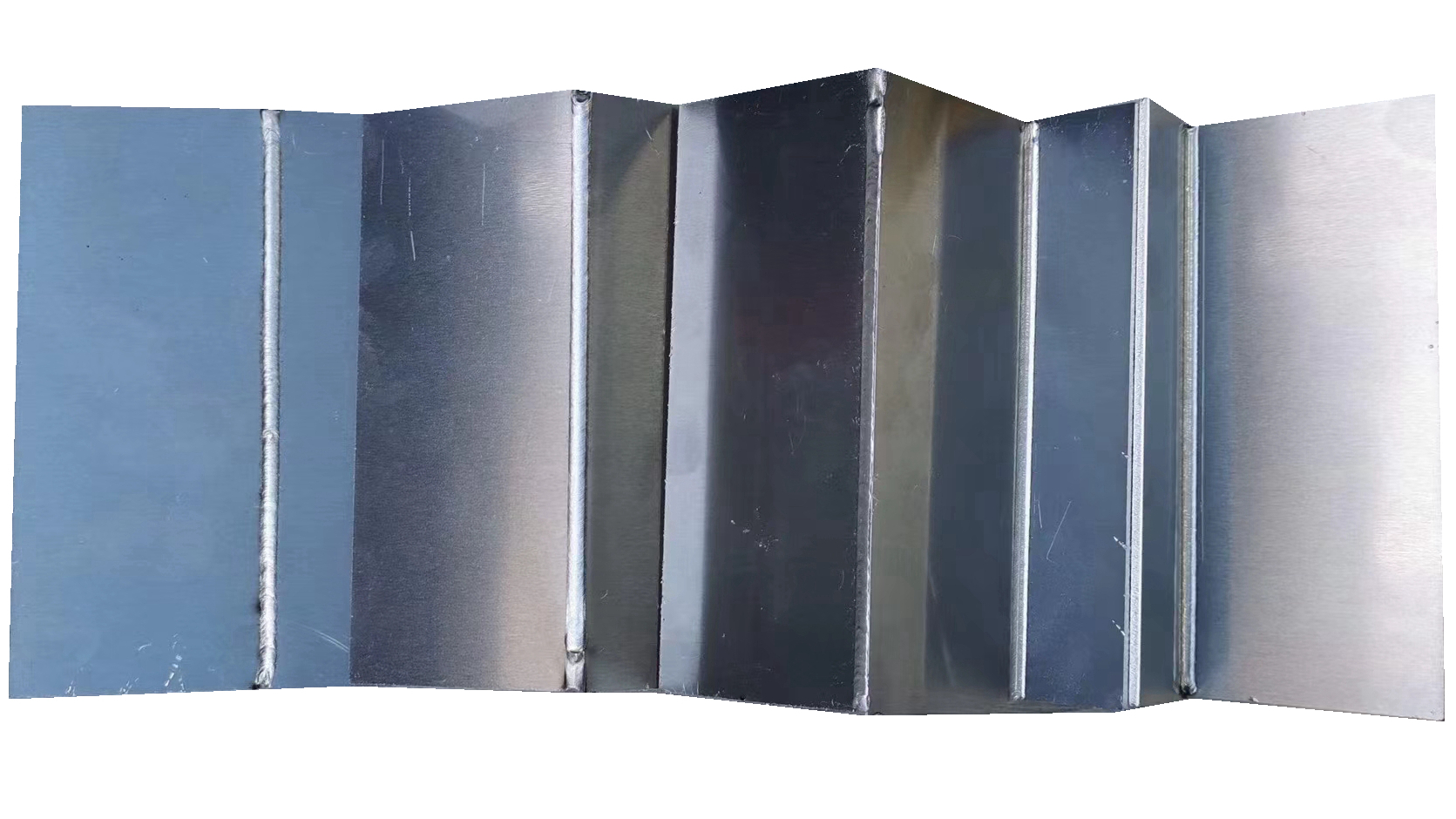

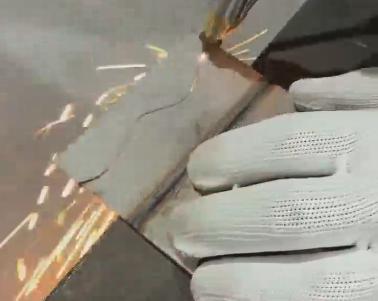

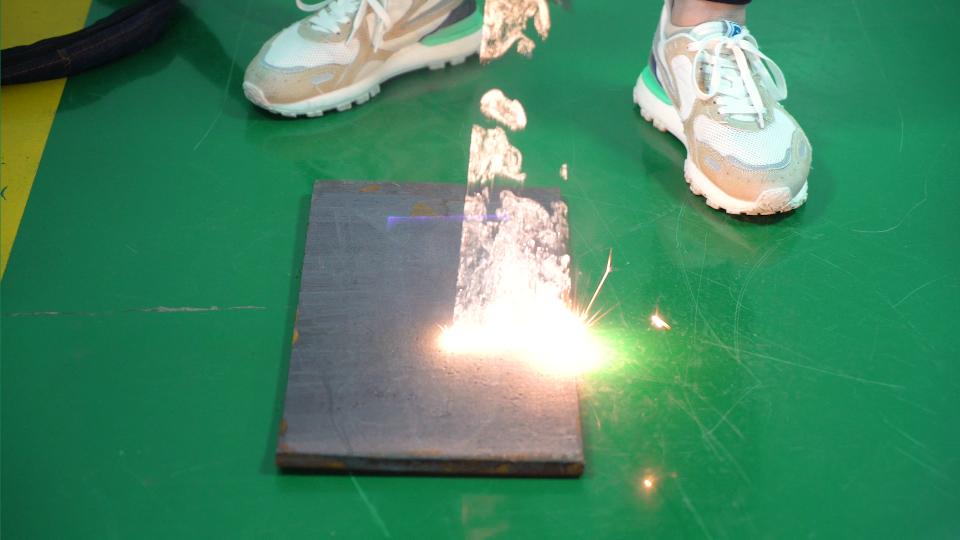

Welding	Cleaning	Welding seam cleaning	Cutting

Main parts and brand as follows

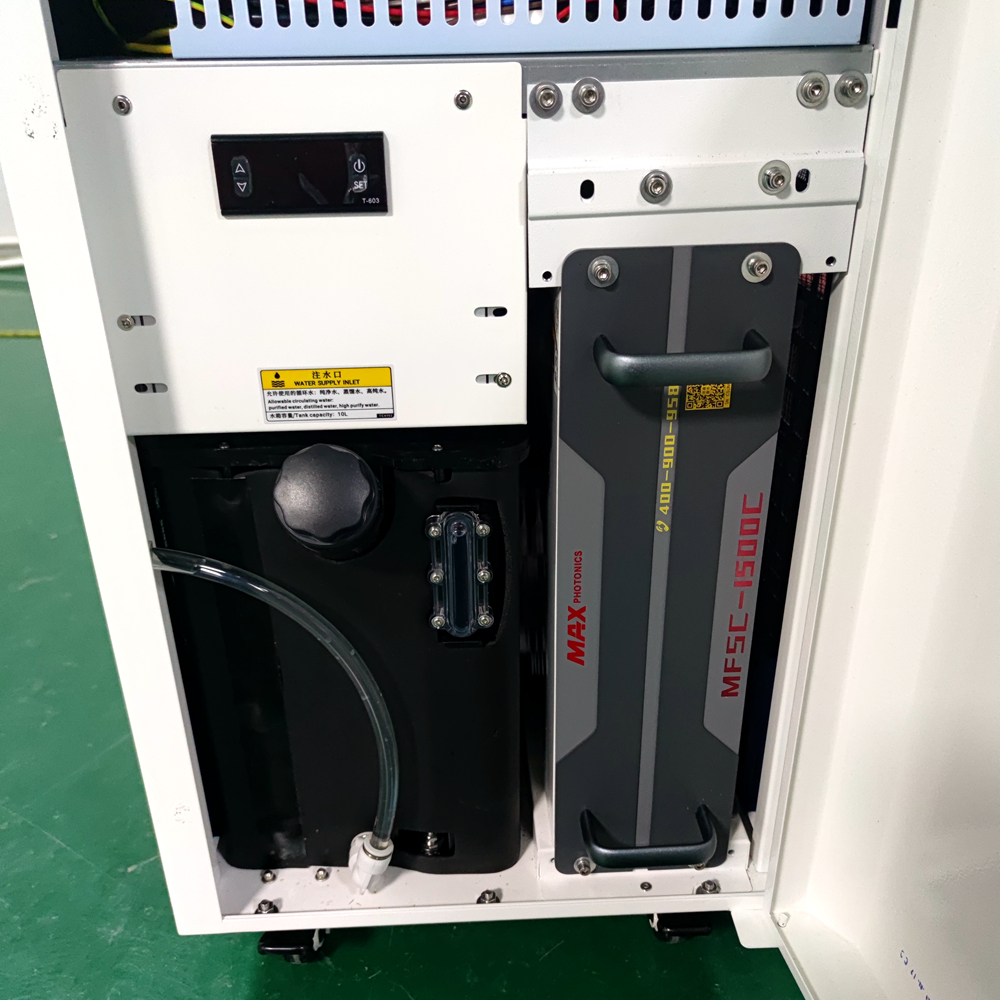

Fiber Laser	IPG/ MAX/ RAYCUS (Germany/ China made)
Laser Cutting Head	REFAR/ CCILASER (China made)
Electric Parts	SCHNEIDER (France made)
CNC System	REFAR/ CCILASER (China made)
Water Chilling Unit	S&A/ TONGFEI (China made)

TECHNICAL ADVANTAGES

Fast welding speed. 2-3 times faster than traditional welding process.
Less welding consumables, long life, safer and more environmentally friendly.
Weld seams are smooth and beautiful, no secondary treatment, saving time and cost.
Welding work piece has little thermal influence and no deformation.
The beam can be adjusted 0.5-6mm by swing the laser head, which makes up for the disadvantage of the laser welding spot,
expands the tolerance range of the machined parts and the weld width, and obtains better weld formation.

By adjusting the technical parameters, it can achieve metal cutting work.
By changing the cleaning head, it can achieve metal cleaning work.
Energy storage welding function is option.

More details, welcome to contact us at any time.

SPECIFICATIONS

No.	Technology Parameters Name	Technology Parameters
1	Laser Power Rate	1500W/ 2000W/ 3000W
2	Power Supply	220/380V 50Hz
3	Fiber Length	10m/15m
4	Working Type	Continuous / modulation
5	Welding Speed	0-120mm/min
6	Water Cooling Chiller	Industrial constant temperature
7	Working Environment Temperature	15~35 ℃
8	Working Environment Humidity	< 70% No condensation
9	Welding Thickness	0.5-6mm
10	Welding Gap Requirement	≤0.5mm

MACHINE FUNCTION COMPARISON

No.	Item	Traditional Welding Machine	Laser Welding Machine
1	Heat input	Very High	Low
2	Work Piece Deformation	Big	Small
3	Bond Strength with Base Metal	Normal	Perfect
4	Follow-up Work	Polishing	No need or few polishing
5	Welding speed	Normal	Fast
6	Applicable material	Stainless steel/ Carbon steel/ Galvanized sheet
7	Consumables	More consumables	Less consumables
8	Operation difficulty	complex	Easy
9	Operator safety	Unsafe	Safety
10	Environmental protection impact	Non Ecology	Ecology
11	Welding fault tolerance	Good	Good
12	Swing welding	no	yes
13	Beam width adjustment	no	yes
14	Welding quality	Poor	Perfect
