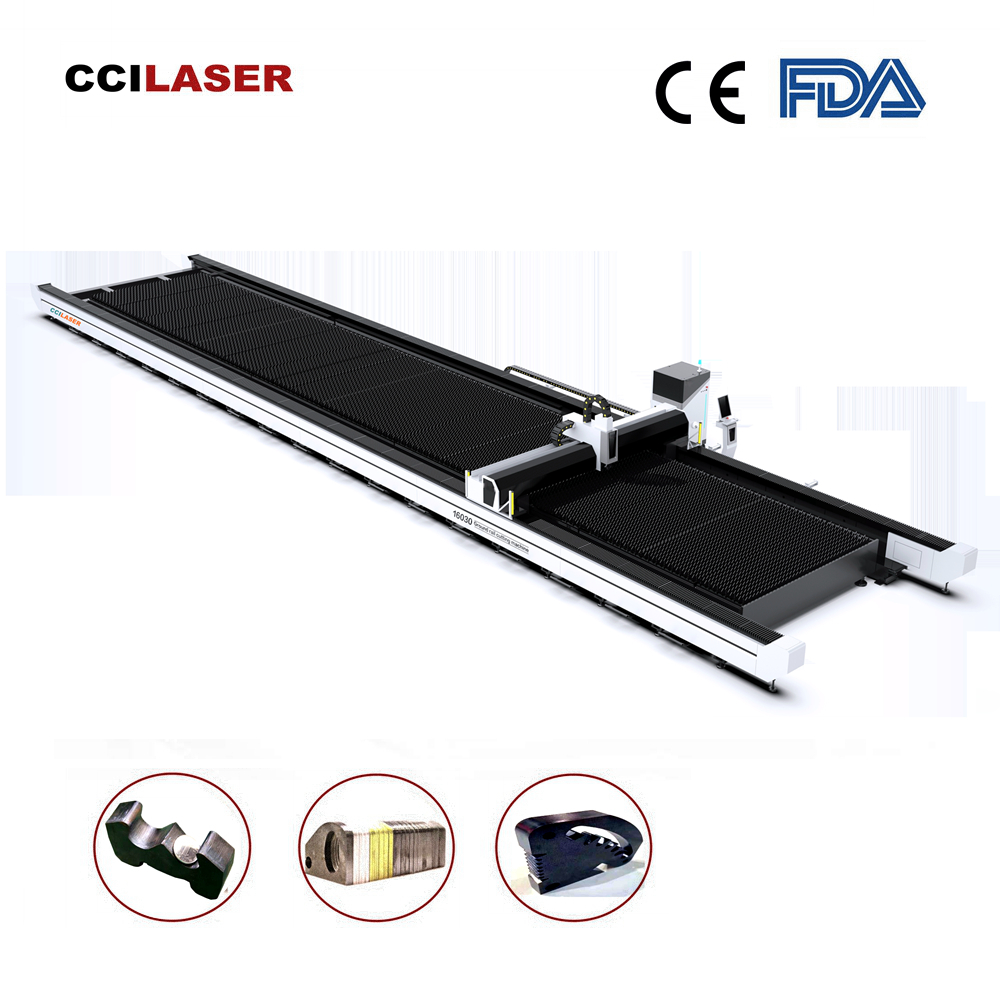

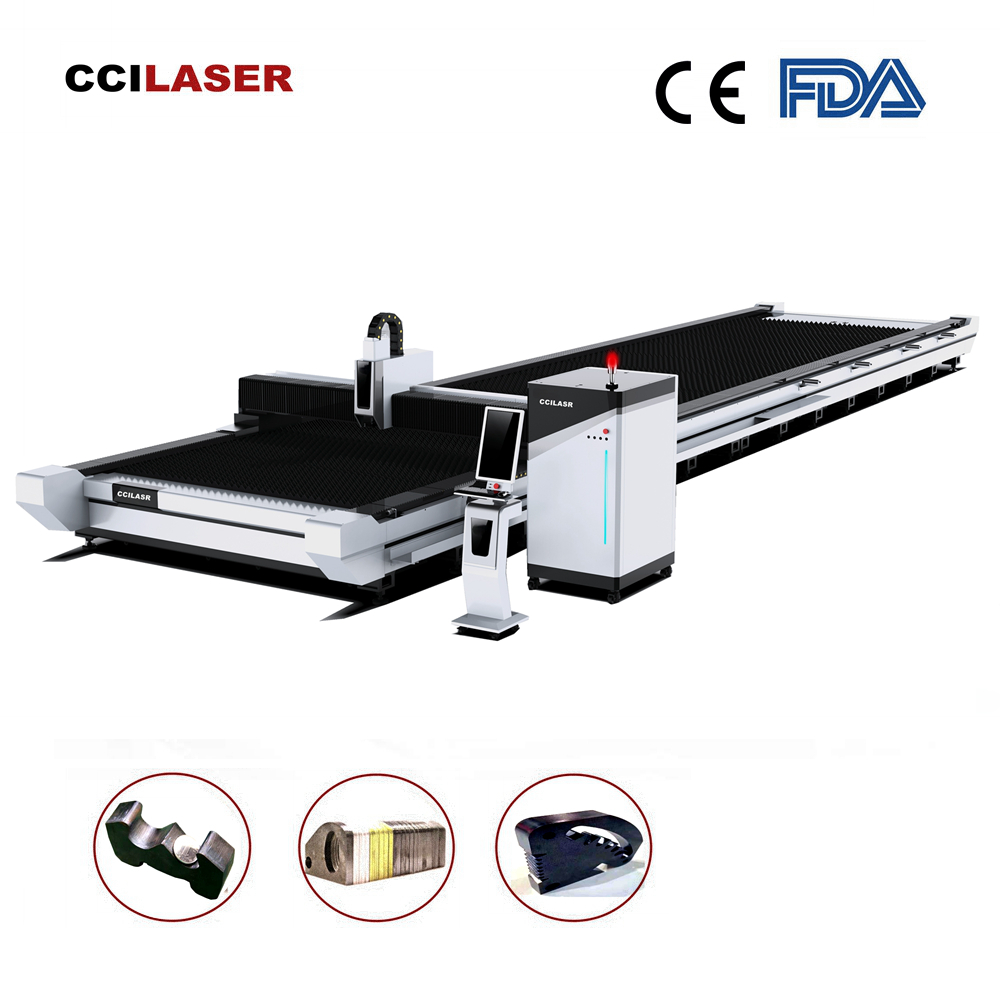

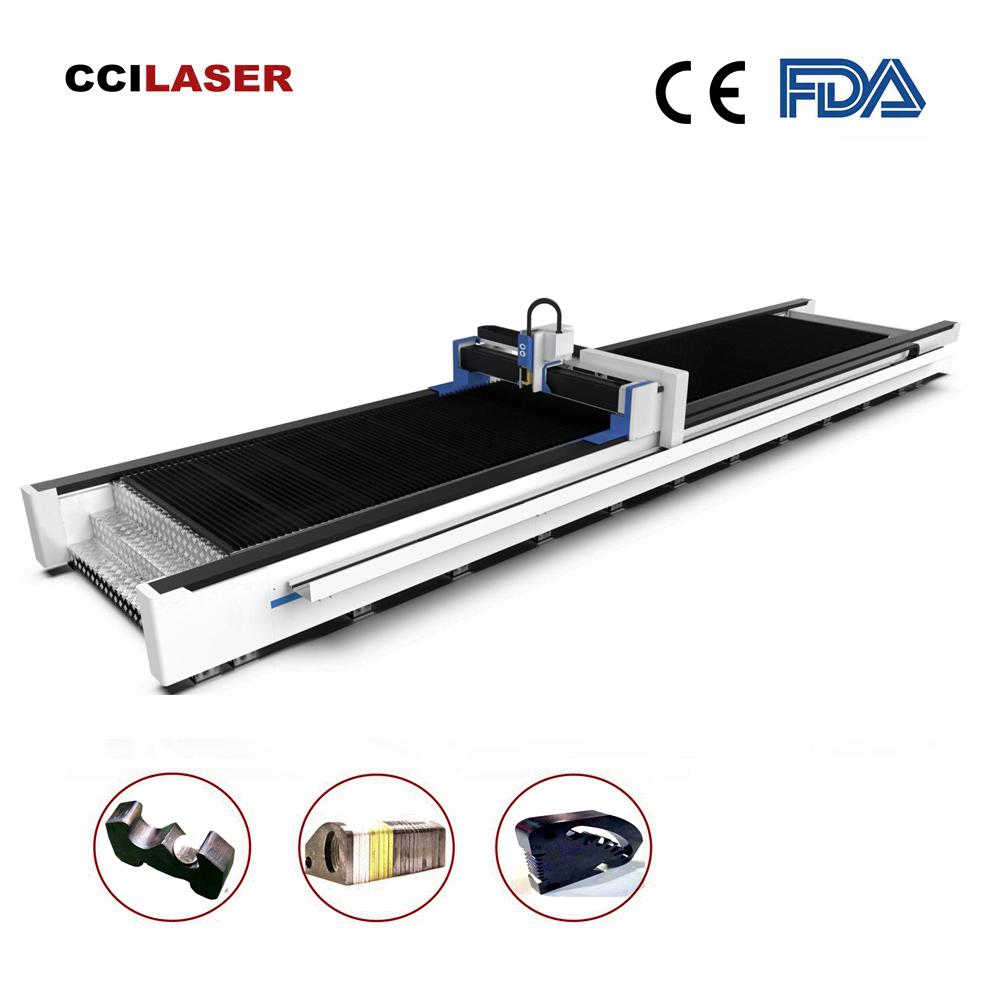

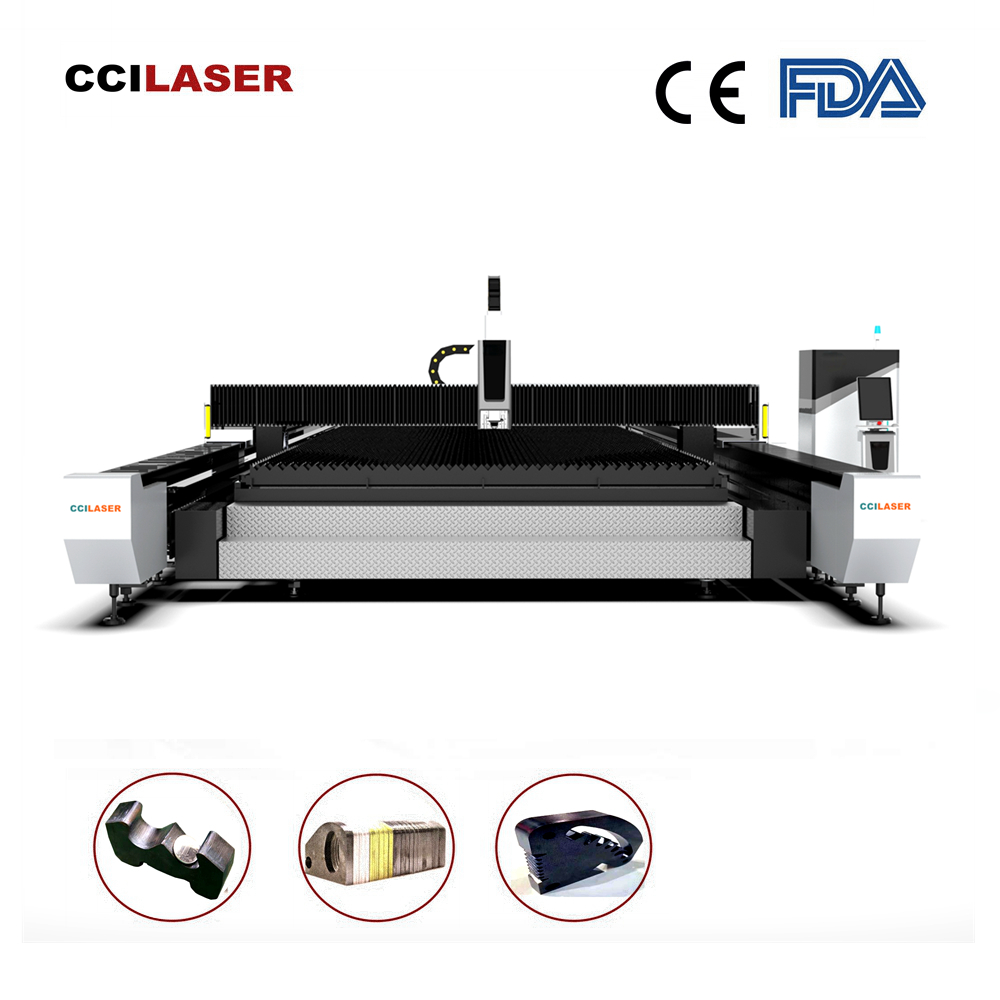

Large Format Fiber Laser Cutting Machine

Name：Large Format Fiber Laser Cutting Machine

Model：FLC-G26032/G30050

Video Linkage:

Large Format Fiber Laser Cutting Video for carbon steel

Large Format Fiber Laser Cutting Video for stainless steel

Large Format Fiber Laser Bevel Cutting Video for carbon steel

The CCILASER FLC-G large format fiber laser cutting machine comes standard with 6000W IPG/ RAYCUS power with optional upgrades. Process stainless and carbon steel as well as aluminum, brass, titanium and more.

Application Industry:

Kitchenware, lamps, hardware cabinets, sheet metal processing, auto parts, air conditioners, elevators, hotel metal supplies, etc.

Main parts and brand as follows

Fiber Laser	IPG/ RAYCUS (Germany / China made)
Laser Cutting Head	RAYTOOL (Swiss made)
Gear & Rack	YYC/PMI (China Taiwan made)
Lead Rail	HIWIN (China Taiwan made)
Pneumatic Parts	SMC (Japan made)
Electric Parts	SCHNEIDER (France made)
Reducer	MOTOREDUCER (France made)
CNC System	CYPCUT (China made)
Servo Motor & Driver	YASKAWA (Japan made)
Water Chilling Unit	S&A (China made)

DESCRIPTION

Applications primarily suited for cutting large size stainless, carbon, aluminum, titanium, and other non-ferrous metals.

Mounted touch screen monitor and remote control for convenient interfacing.

Includes Free on site install and training

Limited Two (2) year Warranty covers laser machine parts.

SPECIFICATIONS

Position Accuracy	±0.01mm/1000mm
Re-position Accuracy	±0.03mm/1000mm
Cutting Area	260003200mm/240002500mm/ 30000*5000mm/ customized size
Fiber Power	U.S. made IPG/ RAYCUS 6000W-50000W
Graphic Format Support	CAD, DXF and so on
Motor type	AC Servo motors
Transmission System	Gantry Double Drive Structure
Material platform	Saw Tooth Blade cutting platform for metal cutting
Venting Attachments	Air exhaust fans with venting pipe
Machine Dimensions	According to final customized model
Net Weight	15000-25000KG

WORKING CONDITION REQUIREMENT

Electric	Power Supply: 380V 50Hz/ 220V 60Hz
	The stability of 3 phase voltage: +5%
	Output voltage adjusting rate: less 2%
Assisted Air	Compressed air: Purification and dry；
	O2: High purity;
	N2: Purity no less than 99.9%;
Metal Sheet	homogeneous material；
Metal Sheet	Neat & clean surface.
Compressed Air	Screw compressor (more than 12Kg) with oil water separator and dryer.
Compressed Air	Air storage tank Capacity: 1m3
Water	Purified water
