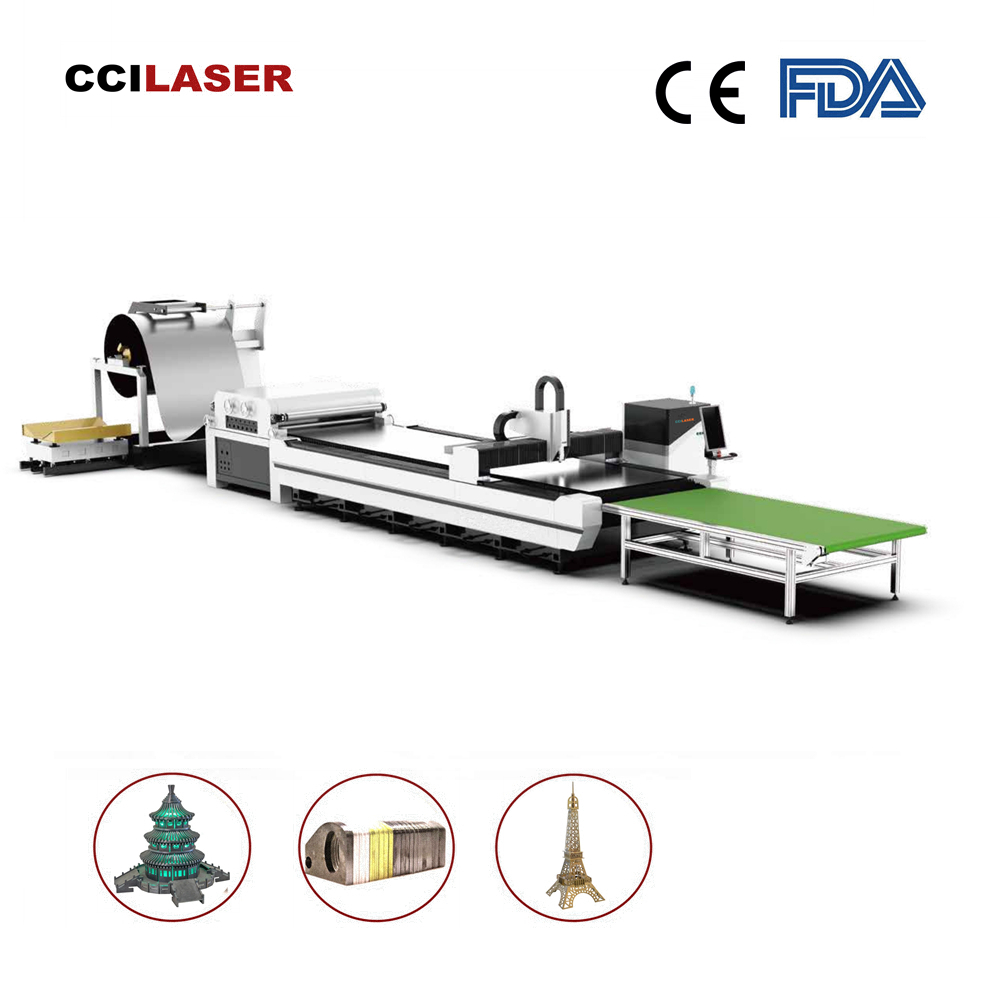

R type Fiber Laser Cutting Machine for Metal Coil

Model: FLC-4015R

DESCRIPTION

Applications primarily suited for cutting thin thickness coil steel.

Mounted touch screen monitor and remote control for convenient interfacing.

High effieciency and cost saving.

Positioning and rectifying with high precision.

All procedures are controlled by CNC system.

Includes Free on site install and training

Limited Two (2) year Warranty covers laser machine parts.

SPECIFICATIONS

Position Accuracy	±0.05mm/1000mm
Re-position Accuracy	±0.03mm/1000mm
Cutting Area	4050*1530mm
Fiber Power	China made RAYCUS 1000W-3000W
Graphic Format Support	CAD, DXF and so on
Motor type	AC Servo motors
Transmission System	Gantry Double Drive Structure
Material platform	Saw Tooth Blade cutting platform for metal cutting
Venting Attachments	Air exhaust fans with venting pipe
Machine Dimensions	634023001550mm
Net Weight	4500KG

WORKING CONDITION REQUIREMENT

Electric	Power Supply: 380V 50Hz/ 220V 60Hz
	The stability of 3 phase voltage: +5%
	Output voltage adjusting rate: less 2%
Assisted Air	Compressed air: Purification and dry；
	O2: High purity;
	N2: Purity no less than 99.9%;
Metal Sheet	homogeneous material；
Metal Sheet	Neat & clean surface.
Compressed Air	Screw compressor (more than 12Kg) with oil water separator and dryer.
Compressed Air	Air storage tank Capacity: 1m3
Water	Purified water

MAIN COMPONENTS

CUTTING EFFECTS
