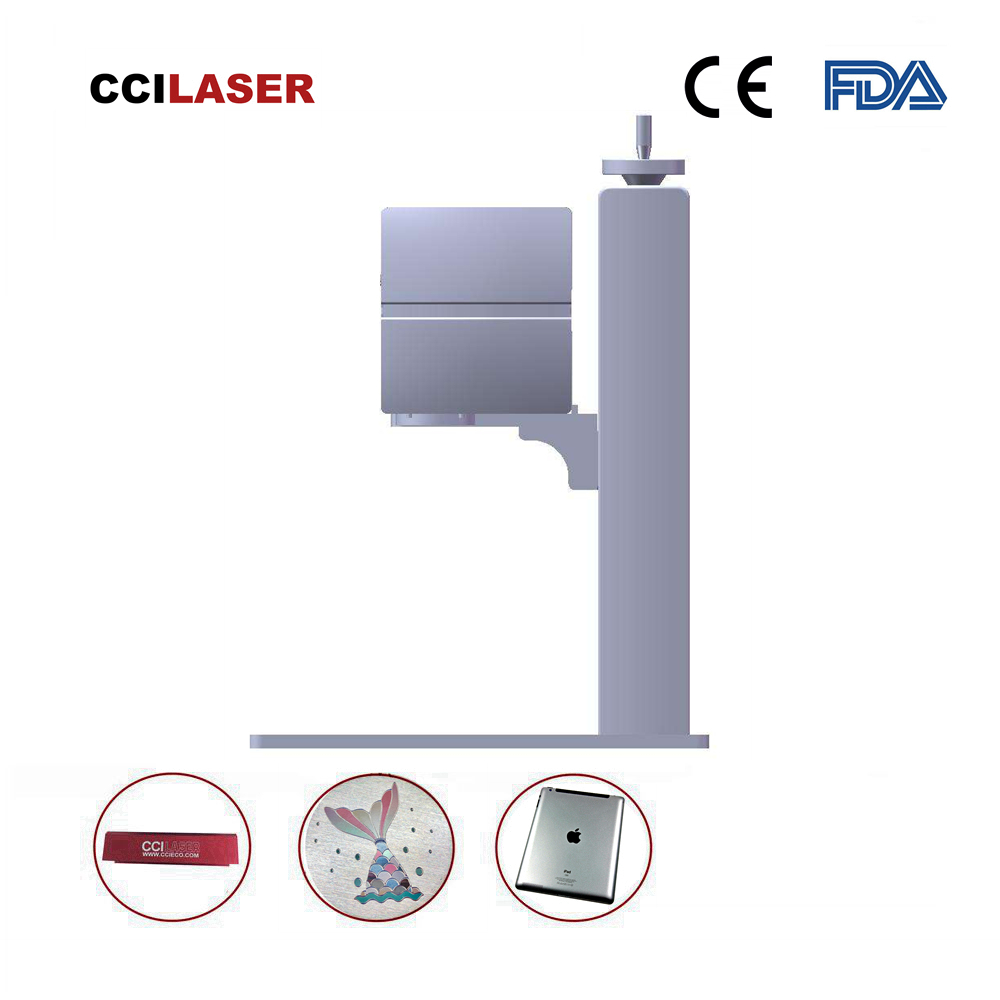

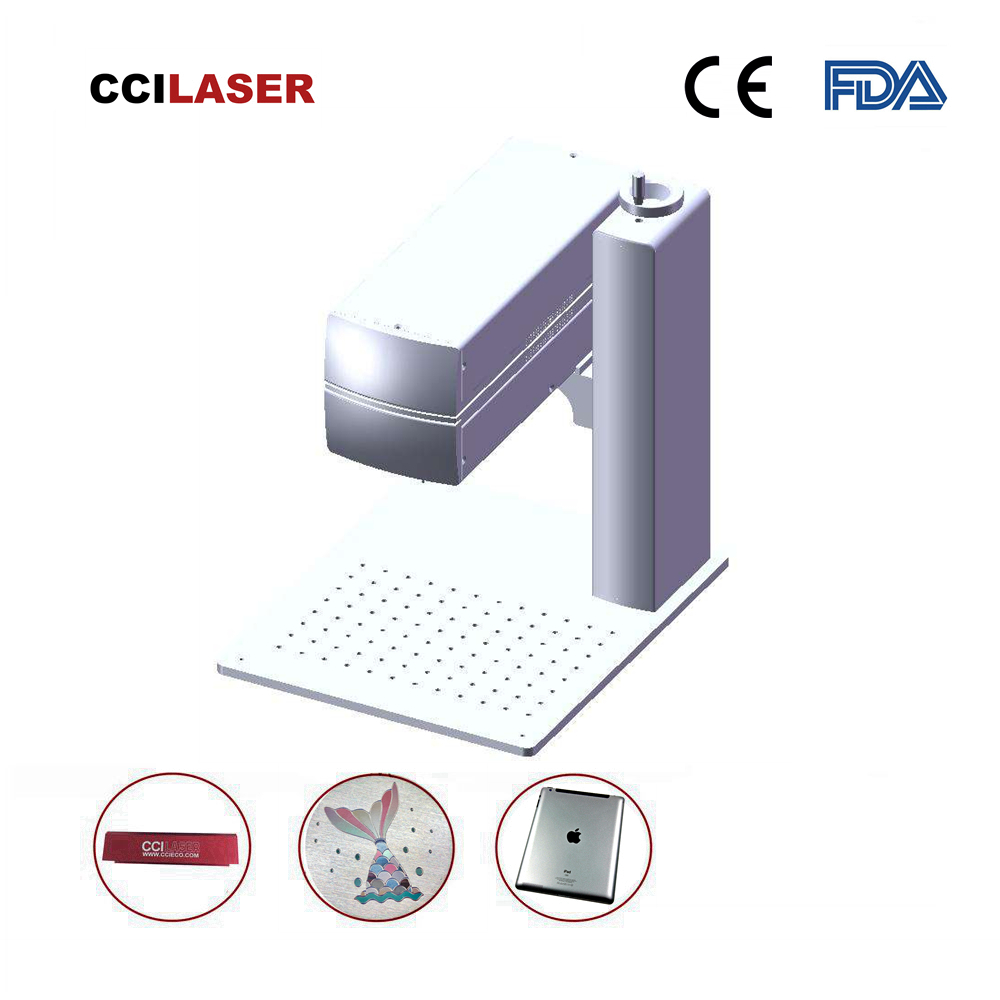

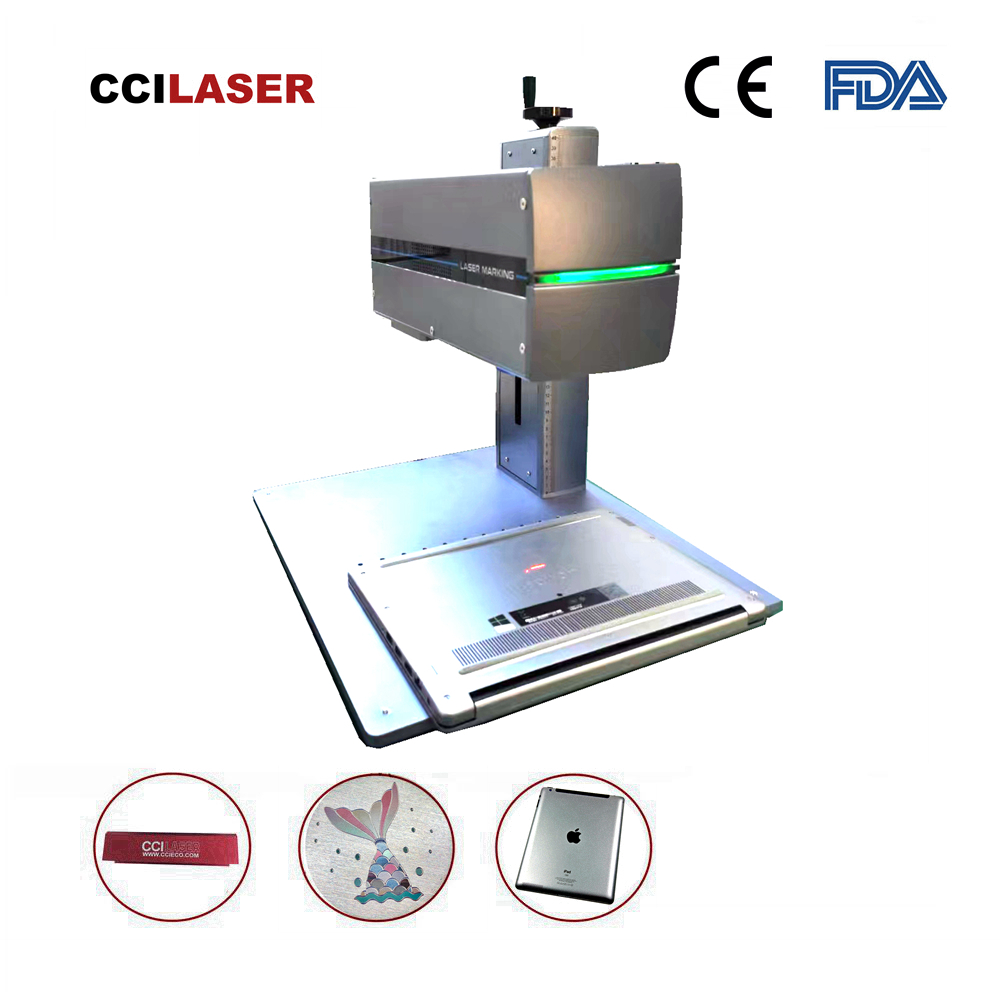

The CCILASER FM Intelligent All-in-one Fiber Laser Marking Machine comes standard with 20W MAX power with optional upgrades. Process stainless steel and carbon steel and most of metal material and etc.

Machine Video linkage:

 Intelligent All-in-one Fiber Laser Marking Machine Video

Application Industry:

Suitable for electronic components, integrated circuits, electrical appliances, communication products, sanitary ware, tools, accessories, knives, glasses, clocks, jewelry, auto parts, luggage buckles, kitchen utensils, stainless steel products and other industry products, etc.

It is artistic, clear and permanent identification mark.


Product characteristics

1.1 All controls are integrated

The laser, control board and optical path field mirror are integrated.

1.2 External high-power power adapter

The laptop power adapter is adopted for external connection, which is convenient and simple.

1.3 Built in control system without computer

The internal integrated control system is adopted, and editing can be realized only by external display or mobile phone/tablet control.

1.4 Wireless WIFI, convenient connection

Connect the WIFI signal to the mobile phone and tablet at will through the USB port external antenna.

1.5 Express your personality and scribble freely

With the mobile phone control, you can draw and draw personalized fonts and patterns on your mobile phone to achieve graffiti printing and highlight your personality.

1.6 All aluminum body, precise and compact

The total weight is 18kg. The integration is small and inexpensive. Players can start with it, and it is no longer a dream.


2.Technical Parameters

Item

Technical Item

FM-20

FM-30

Laser Marking Machine characteristics

Machine material

Sand blasting oxidation all aluminum structure

Laser source

Lifetime more than 100,000 hours

Laser wavelength

1064nm

Actual output power

20W

30W

Marking speed

≤12000mm/s

Master control

Android/iPhone/tablet

Cooling system

Normal temperature air cooling

Minimum line width

0.0012mm

Repetitive positioning accuracy

0.003mm

Marking range

70mm * 70mm or 110 * 110mm

(or other customized ranges)

Positioning method

Red light indication

Marking rows number

Any rows number within the marking range

Line speed

0~130m/min (depending on the material)



Item

Technical Item

FM-20

FM-30

Software Introduction

Multilingual

English, French, Spanish, German, Chinese, Russian, Arabic, etc. (other customized)

Administrative Permissions

Multi user management rights

operating system

Dedicated mobile phone APP, or the monitor is directly connected to the local controller

Coding mode

Static, simulation and flight three modes

Reserved signal

Start marking, marking status, marking completion, fault alarm

data protection

With power failure data protection function

Missing mark monitoring

False triggering due to material reflection, providing over speed alarm function

Removing intersection

Automatically remove cross points to avoid cross points

Code sending software

Single and double devices can send code

Supporting Type

typeface

Chinese and English, numbers, traditional Chinese and other standard fonts

file format

BMP/DXF/HPGL/JPEG/PLT/PNG

bar code

CODE39, CODE128, CODE126, QR, Authentic Code (optional)

Laser Marking Machine

Power Supply

Standard configuration: external power supply AC100~240V/50~60HZ

Power consumption

200W

weight

Whole weight: 18Kg, marking head: 8.5Kg

Environment

requirement

The external temperature is 0- 45 centi degree; Humidity ≤ 95, non condensing; No vibration







3. Quality standards implemented

Standard Series No.

Details

GB 7247-87

Radiation safety of laser products, requirements for equipment classification and user guide

GB10320-88

Electrical safety of laser equipment and facilities

ISO9000-3

International Software Standards

GB/T12123-89

Sales packaging procedure

IEC 536

Classification of electric shock protection for electrical and electronic equipment





4.Main Components

Series No.

Item

Brand

Model

Quantity

1

Laser

MAX

F20/30

1

2

Galvanometer

OUYA

S880

1

3

Field lens

OPEX

F-theta100

1

4

Power Supply

DELTA

EADP-360AB

1

5

Software control system

OE

LYP-VGA

1





5.Accessories List

Series No.

Item

Quantity

1

Debugging tools

1

2

Power cord

1

3

Instructions

1

4

Warranty bill

1

5

Certificate

1

6

USB disk/software

1
