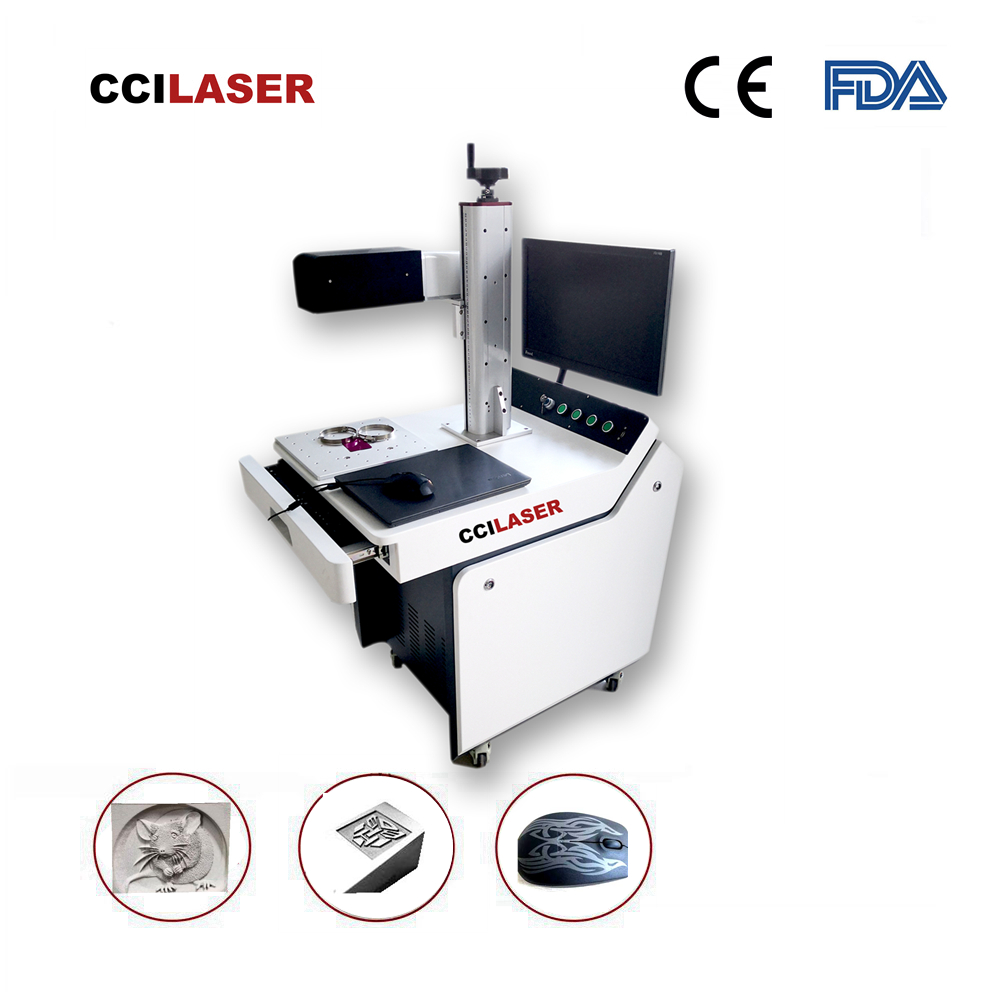

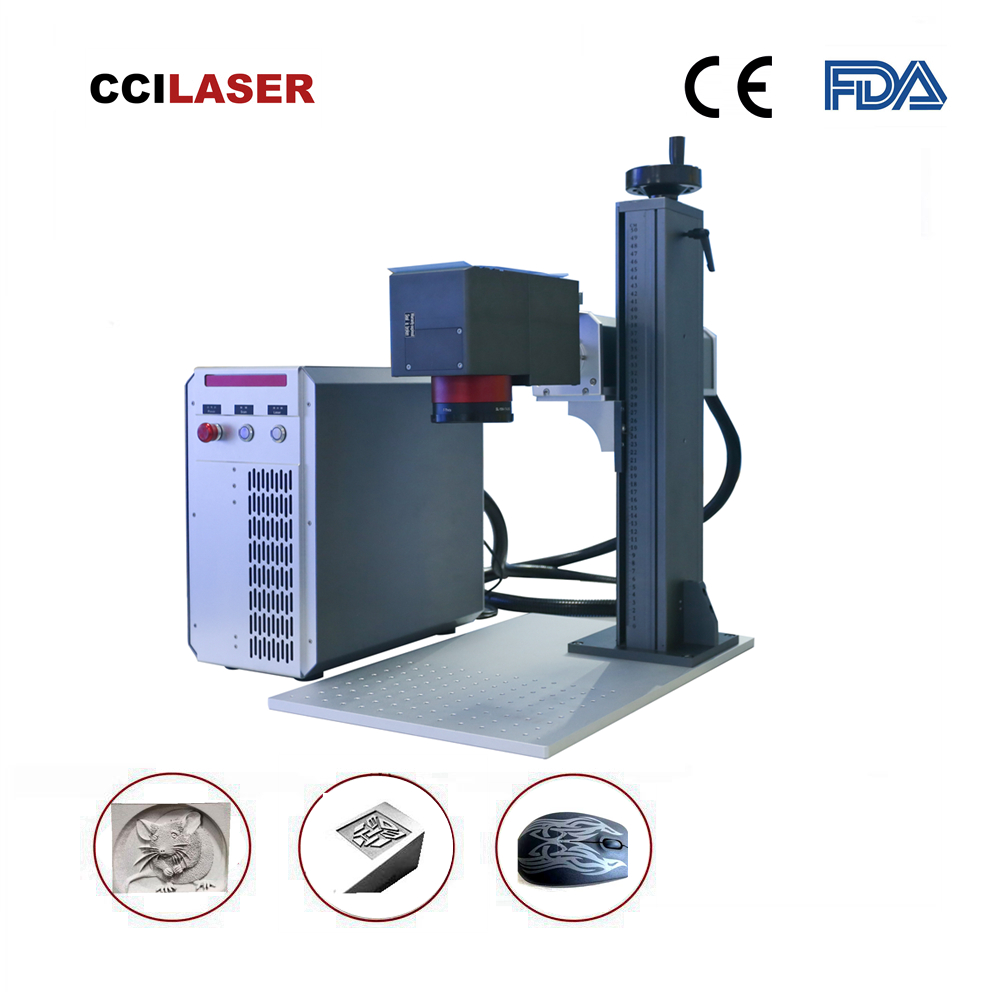

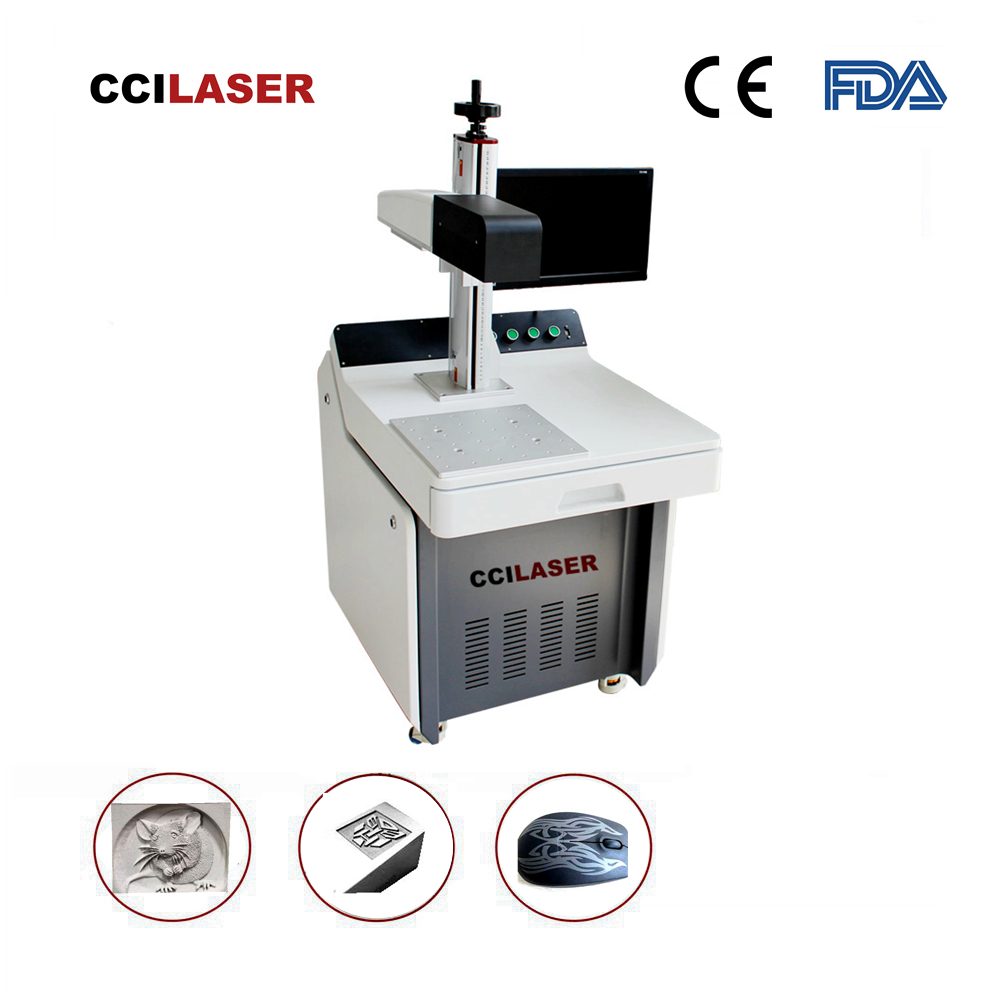

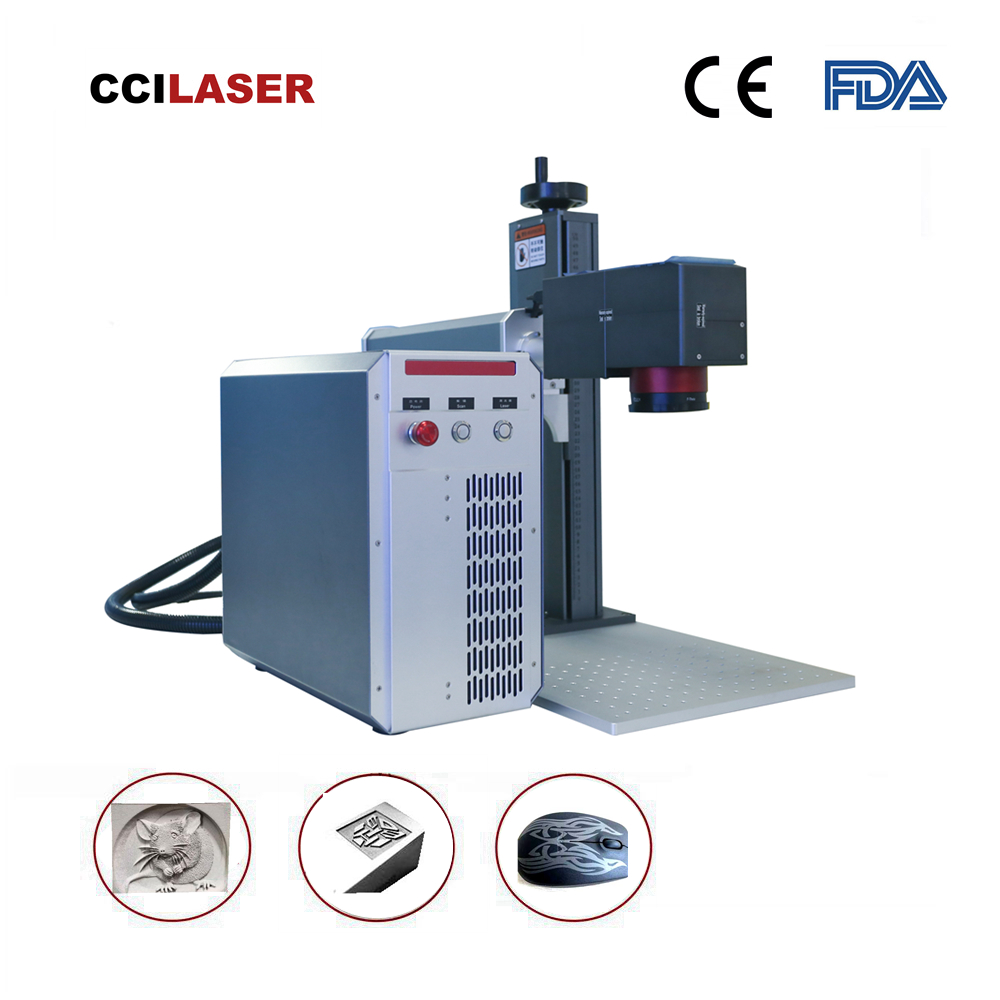

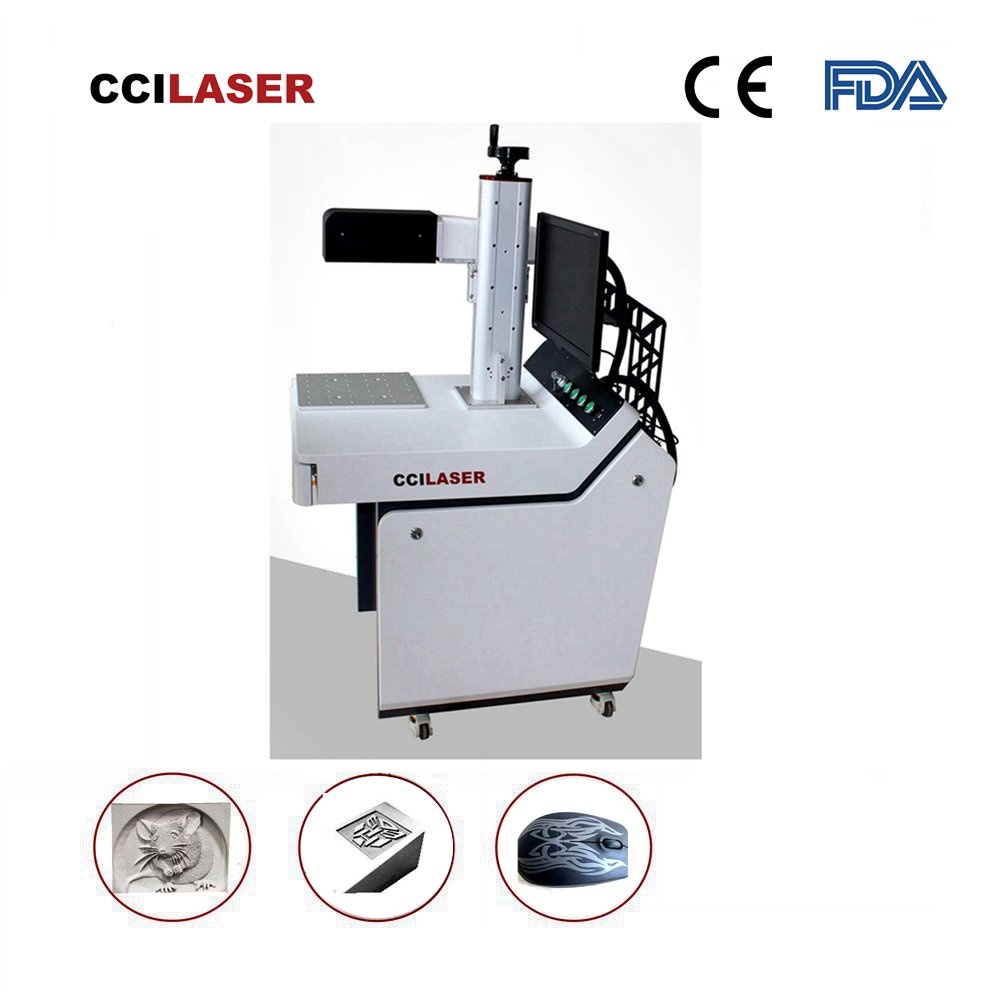

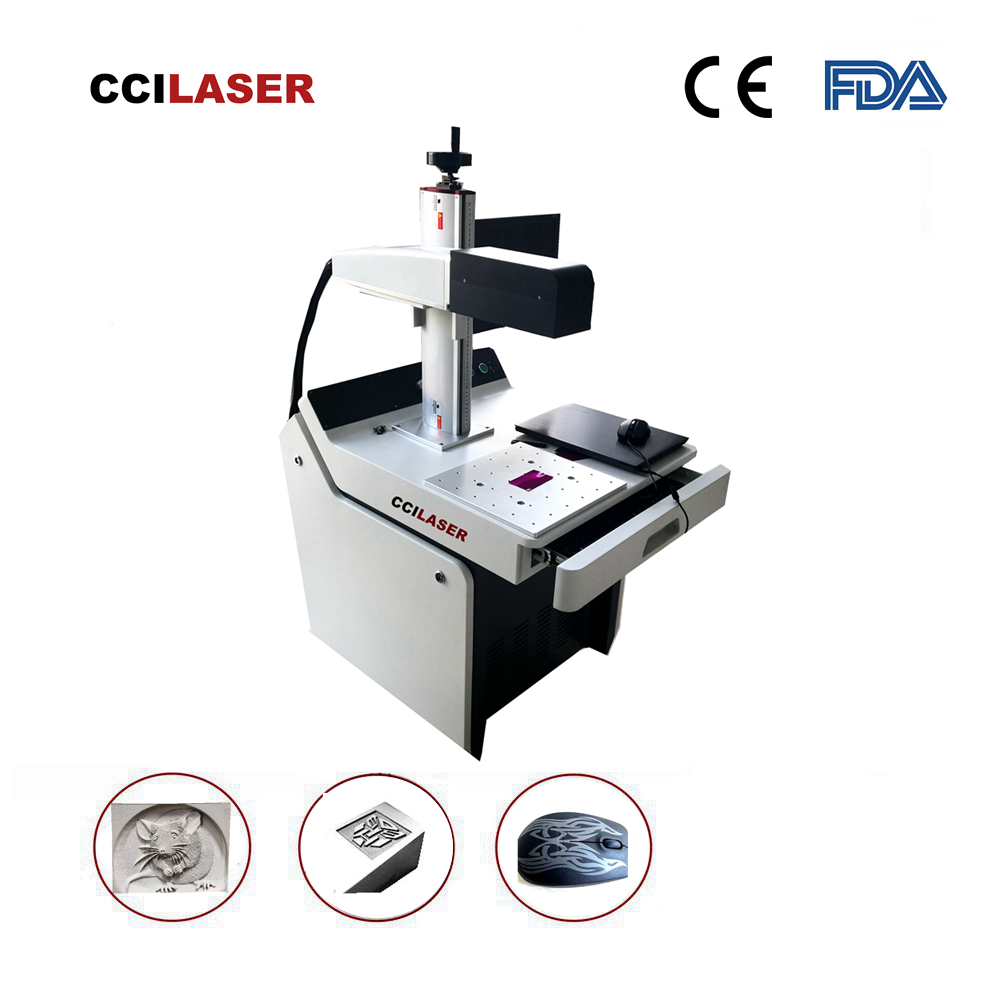

Name:3D Autofocus dynamics Fiber Laser Marking Machine

Model:FM-3D



The CCILASER FM-3D 3D Autofocus dynamics Fiber Laser Marking Machine comes standard with 30W IPG power with optional upgrades. Process stainless steel and carbon steel and most of metal material and etc.

Application Industry:

Any metal (including rare metals), engineering plastics, plating materials, coating materials, spray materials, plastic rubber, epoxy resin, etc.



Main parts and brand as follows

   Fiber Laser

   IPG/ RAYCUS (U.S. / China   made)

   Galvanometer Scanner

   FEELTEK/ SINO-GALVO   (China made)

   System

   FEELTEK/ SINO-GALVO   (China made)

   Filed   Lens

   RONAR-SMITH (Singapore   made)



DESCRIPTION

The imported core device is equipped with high-speed, high-precision 3D galvanometer, combined with 3D special software and control system, which can realize the fine processing of any curved material surface.

It can track the depth of the engraving focus in real time, so that the processing efficiency and quality are better than the 2D marking machine.

High-precision three-dimensional positioning technology, high-speed focusing and scanning system, laser beam fundamental mode, short pulse, high peak power, and high repetition rate provide customers with the ideal marking effect;

Three-dimensional graphics processing technology has friendly operation interface and is suitable for dxf, plt, cnc, step, iges and other formats;

High photoelectric conversion rate, long machine life and easy maintenance;

Marking speed is improving the processing efficiency greatly.



SPECIFICATIONS

Item

Model

FM-3D-30W

FM-3D-50W

FM-3D-100W

Laser Parameters

Laser Type

fiber-optic laser

fiber-optic laser

fiber-optic laser

Average Output Rate

30W

50W

100W

Wave Length

1064nm

Pulse Repetition Frequency

30-200KHz

50-200KHz

50-200KHz

Cooling Type

Air Cooling

Air Cooling

Air Cooling

Marking Parameters

Marking Type

XYZ Three-axis   Dynamic Focus

Marking Scope

(300*300/200*200)*80mm   (According to demand)

Focus Range

≤±30mm

Max. Line Speed

≤10000mm/s

Max. Flat Marking Speed

350 Characters/S

Resolution Ratio

0.001mm

Repeated Position Accuracy

0.003mm

Min. Line Width

0.03mm

Min. Character Height

0.1mm

Whole Machine Parameters

Marking Environment

Temperature: 0~35℃; humidity:   5-75%

Power Supply

Single Phase AC220/110V 50/60Hz

Whole Machine Power Rate

0.5Kw

Overall Dimension

1400mmX850mmX1700mm

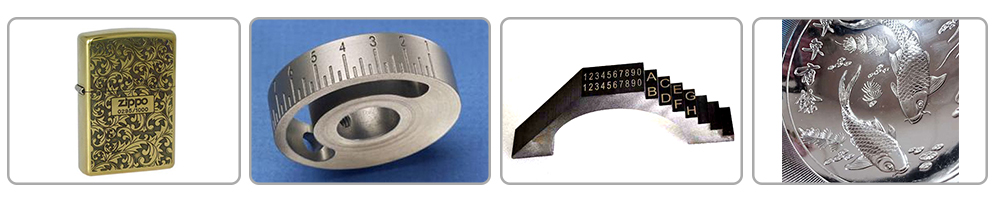

MARKING  EFFECTS
