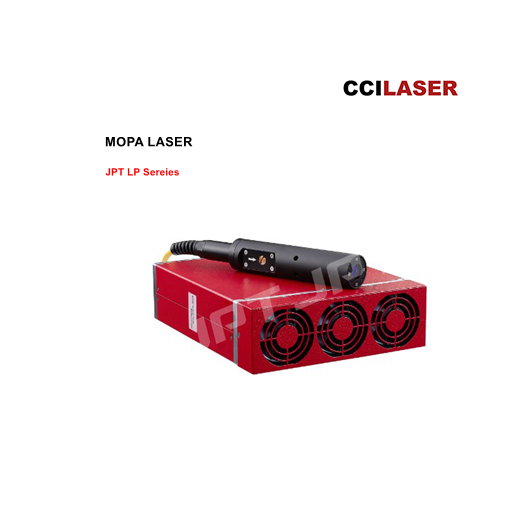

JPT MOPA M7 Fiber Laser LP series YDFLP-C-20-M7-S-R YDFLP-C-30-M7-S-R YDFLP-E-20-M7-S-R YDFLP-E-20-M7-S-R

1. Feature:
JPT LP series plused fiber lasers makes use of master oscillator power amplifier (MOPA) configuration, and show excellent laser performance as well as high level of lemporal pulse shaping controllability.
Compared with Q-switching technology, LP seriees has greater flexibility, wider frequency range, higher control precision and superior first pulse.

It can mark color on stainless steel and black on aluminum.


2. Application Advantage:
Scribing, drilling;
Sheet metal cutting, welding;
Surface treatment;
Marking on fly;
Laser Derusting;
Metal surface processing, peeling coating.


3. Main Technical Parameters

No.Model YDFLP-C-20-M7-S-R YDFLP-C-30-M7-S-R
1Average output power rateMore than 20WMore than 30W
2Central Emission Wavelength1064nm1064nm
3Output Power StabilityLess than 5%Less than 5%
4Max. pulse energy0.8mj0.8mj
5Repetition frequency adjustment range1-4000kHz1-4000kHz
6Pulse Width2-350ns2-350ns
7Beam QualityLess than 1.3 Less than 1.3
8Supply DC Voltage (VDC)24V24V
9Current ConsumptionLess than 5ALess than 6A
10Environment Supply CurrentMore than 5AMore than 6A
11Power @20ºCLess than 110WLess than 144W
12Output beam diameter7±0.5mm7±0.5mm
13Output fiber length2m2m
14Emission Bandwidth @3dBLess than 15nmLess than 15nm
15Polarization OritentationRandomRandom
16Output Power Tuning Range0-100%0-100%
17Operation Temperature0-40ºC0-40ºC
18Weight4.4Kg4.5Kg
19Cooling MethodAir CoolingAir Cooling


4. The difference between MOPA laser and Q-switched laser

No.Application NameQ-switched laserMOPA laser
1Alumina sheet surface peelingThe substrate is easy to deform, and the shading is roughNo deformation, fine shading
2Anodized aluminum blackCan't do this applicationThrough parameter setting, you can mark different shades of blackness
3Deep carved metalRough shadingFine shading
4Stainless steel colorNeed to defocus, the effect is more difficult to adjustVarious colors can be combined by adjusting pulse width and frequency
5PC, ABS and other plasticsThe effect is easy to be yellow, and the hand feels heavy.No feel, not easy to turn yellow
6Transparent paint plastic buttonsMore difficult to cleanEasy to clean, high efficiency
7Electronics/semiconductor/ITO precision processingThe pulse width is too large and the energy is too strongThe pulse width can be adjusted to make the light spot delicate and the energy can be modulated and balanced.
