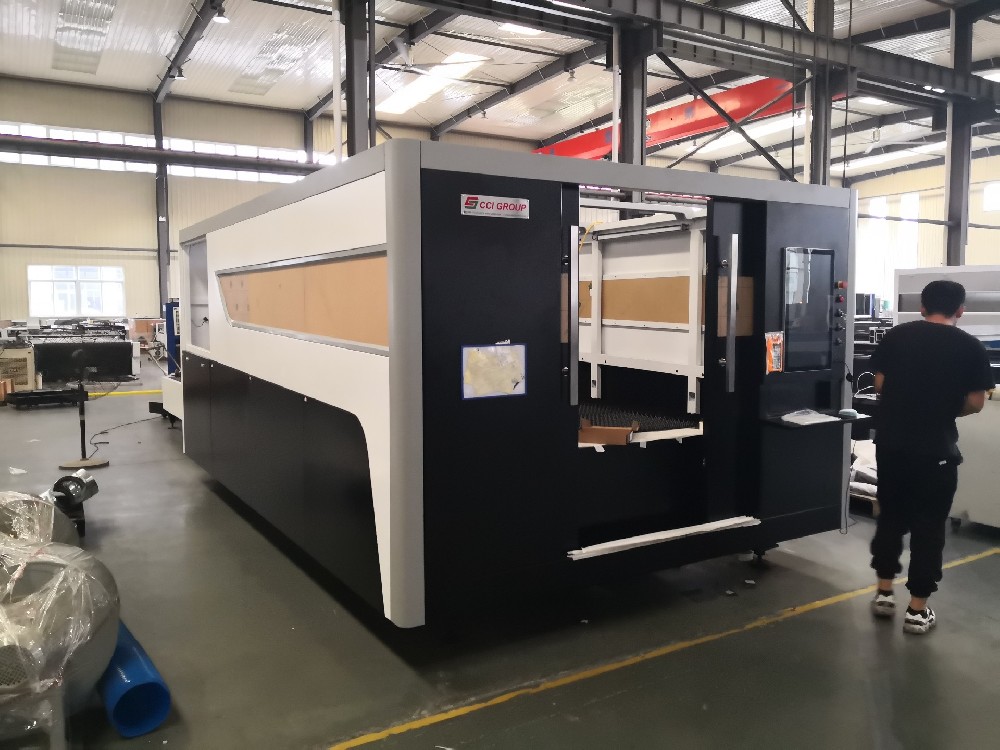

Fiber Laser Cutting Machine Maintenance During Operation

1. Safe operation

1.1. The fiber laser cutting machine is a kind of precision CNC equipment, and the operation of the machine must be ensured by a special person to operate and be responsible.

1.2. The operator must be professionally trained and skilled in operation, non-professionals should not move.

1. 3. Before operation, it must be confirmed that there is no external interference. After everything is normal, hang the material to be cut on the cutting platform, and the plate cannot exceed the cutting range.

2 Daily maintenance and maintenance

2.1. The dirt on the machine tool and guide rails must be cleaned up every working day to keep the machine bed clean. Turn off the air source and power supply when off work, and at the same time vent the gas in the machine tool tube.

2.2. If you leave the machine for a long time, turn off the power to prevent non-professionals from operating

2.3. Pay attention to observe whether there is lubricating oil on the surface of the machine's transverse and longitudinal guide rails and racks to ensure good lubrication.

3 Weekly maintenance and maintenance

3.1. The fiber laser cutting machine must be cleaned up every week, the horizontal and vertical guide rails, the

transmission gear rack and the rack must be cleaned, and the lubricating oil must be added.

3.2. Check whether the slider on the guide rail is damaged and whether the steel ball has fallen out

3.3. Check whether the cutting torch is loose, clean up the garbage from the cutting torch head, and ensure that the arc ignition is normal

3.4. Regarding the height controller, check whether the limit switch is sensitive and whether it needs to be replaced

4 Monthly and quarterly maintenance

4.1. Check whether there is rubbish at the main air inlet, and whether each valve and pressure gauge are working properly

4.2. Check whether all air pipes are loose and whether all pipes are damaged, and replace them if necessary.

4.3. Check whether all transmission parts are loose, check the meshing of gears and racks, and make adjustments if necessary

4.4. Check the control cabinet and operation platform, whether the fastening screws are loose, and clean the debris in the control cabinet with a vacuum cleaner. Check if the thread is loose

4.5. Check the performance of all buttons and rotary switches, replace damaged ones, and test the accuracy of the machine

5 Maintenance of cutting head

5.1. Install the cutting head correctly, ensure that all parts are well matched, and ensure the flow of gas and cooling gas. Keep it clean during installation to avoid dirt sticking to the components.

5.2. Timely Check whether the nozzle ceramic ring is damaged, whether the protective mirror is dusty or damaged, and replace it in time replacement of consumables

5.3. Replace the consumable parts without waiting for complete damage, because severely worn electrodes and nozzles will produce uncontrollable plasma arcs, which can easily cause serious

5.4 damage to the cutting torch. So when the cutting quality is found to be reduced for the first time, replace it in time

6 Maintenance of water chiller

Regarding the water cooler, pure water needs to be replaced once a week. A small amount of alcohol can be added to the water to avoid and clean up the growth of microorganisms in the water and block the cooling system. If the temperature is too low in winter, you can add antifreeze, and the ratio is pure water: antifreeze=3:1. In summer, to prevent condensation, you can keep the water cooler without shutting down for 24 hours.

List of commonly used consumables

7. Maintenance for long term packing

In case the machine tool is to be parked and not to be used for a long time, please smear all the moving components of the machine tool with grease and package them with anti-embroidered paper.

For other parts, it's necessary to check whether there is rust formation, exercise rust removing and rust-proof treatment for rusty parts (dust-proof covers can be added if possible), and clean and check the machine tool regularly
